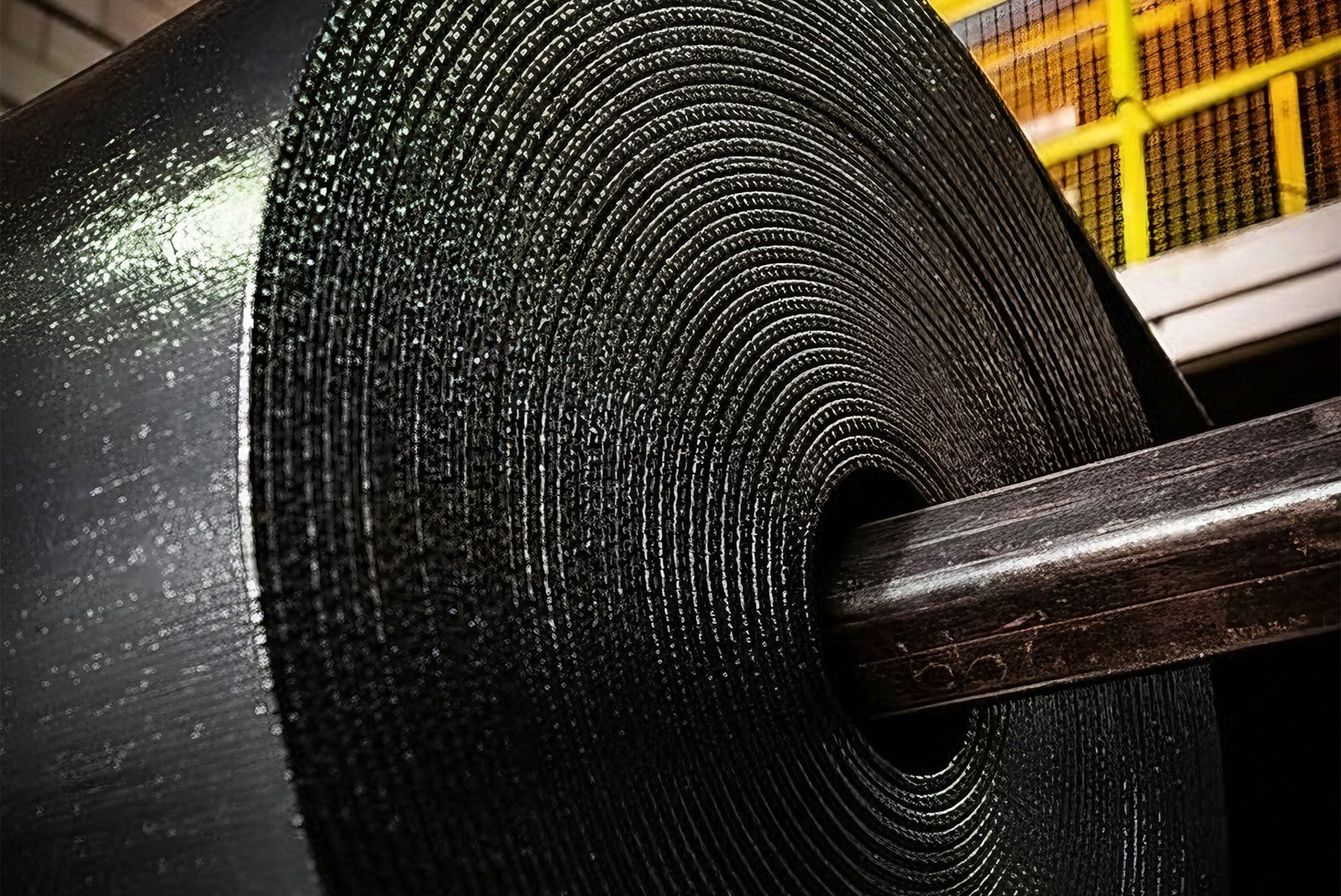

Solid Woven PVC Flame Retardant Conveyor Belts are the primary choice for underground coal mining and tunnel construction where fire safety is paramount. Our PVC series features a unique integral solid woven carcass impregnated with PVC paste, delivering exceptional tear resistance and safety performance. Fully compliant with international standards, these belts provide a non-delaminating structure that is flame retardant and anti-static, ensuring maximum operational security in the most challenging subterranean conditions.
Key Features
- Integral Solid Woven Construction
- Permanent Anti-Static Conductivity
- Reliable Mechanical Fastener Retention
- High Flame Retardant Safety
- Superior Tear Resistance
- Lightweight for Easy Installation
Applications & Industries
Underground Coal Mines
Protects personnel and assets with certified fire and static safety.
Closed Tunnel Environment
Ensures safe material handling in limited ventilation subterranean spaces.
Chemical Processing Plant
Eliminates static build-up risks in volatile and sensitive industrial areas.
Bulk Storage Facilities
Provides fire-safe conveying for grains and other combustible loose materials.
As a specialized custom solution provider, Hebei BAO views these figures as performance benchmarks. We provide precision engineering, meaning the following parameters are fully negotiable and will be fine-tuned to your exact project needs: Belt Width, Cover Thickness, Ply Count, Rubber Grade, and the required Safety Factor. Our final product is certified to meet your unique specifications, ensuring optimized performance and longevity.
| Type | Grade | Longitudinal Strength (N/mm) | Transverse Strength (N/mm) | Breaking Elongation (%) | Min Drum Dia (mm) |
|---|---|---|---|---|---|
| 680S | 4 | 680 | 265 | 15 | 320 |
| 800S | 5 | 800 | 280 | 15 | 400 |
| 1000S | 6 | 1000 | 300 | 15 | 500 |
| 1250S | 7 | 1250 | 350 | 15 | 500 |
| 1400S | 8 | 1400 | 350 | 15 | 630 |
| 1600S | 9 | 1600 | 400 | 15 | 750 |
| Safety Item | Testing Parameter | Standard Requirement |
|---|---|---|
| Alcohol Combustion | Average Flame Duration | <= 3S |
| Alcohol Combustion | Single Flame Duration | <= 10S |
| Propane Combustion | Maximum Damaged Length | <= 1250mm |
| Propane Combustion | Minimum Damaged Height | >= 50mm |
| Conductivity Property | Surface Resistivity | <= 3.0 x 10^8 Ohms |
| Drum Friction | Maximum Surface Temperature | <= 325C |
| Drum Friction | Safety Outcome | No Spark |
BAO Manufacturing and QC Authority
BAO is an established, large-scale manufacturer rooted in the Boye Industrial Hub, specializing in advanced heavy-duty conveyor systems since 1980. We integrate proprietary R&D and large-format production capacity up to 3300mm to deliver high-quality, technically demanding belting solutions globally.
Customized Process
01
Define Requirements
Client submits all necessary parameters: belt type, ply count, width, and specific environmental details for analysis.
02
Engineering Design
Our engineering team validates technical feasibility and designs the optimal carcass and rubber compound structure.
03
Material Validation
Raw materials are validated in our in-house lab to confirm integrity and performance before production commences.
04
Controlled Production
Manufacturing proceeds under strict QC protocols, utilizing high-capacity presses for a reliable, continuous supply.
05
Final Quality Check
Finished product undergoes comprehensive dimensional and physical property testing to verify compliance with order specifications.
06
Certified Delivery
Product is delivered with a complete quality inspection report, backed by long-term technical support services.
FAQs
1. What is the safety factor for your PVC solid woven belts?
Our PVC belts are designed with a safety factor of 10, meaning the working tension is one-tenth of the tensile strength.
2. What is the maximum transporting angle for PVC belts?
Standard PVC solid woven belts are typically recommended for transporting angles less than 16 degrees.
3. How do you ensure the belt will not ignite under friction?
We perform drum friction tests ensuring surface temperatures remain below 325C with no sparks or ignition occurring.
4. Can you customize the belt width for specific mine galleries?
Absolutely. As a custom solution provider, we can manufacture widths according to your specific underground conveyor system requirements.
5. What makes the solid woven carcass superior to layered belts?
The integral woven structure eliminates the risk of ply separation (delamination), providing much higher resistance to tearing and impact.
6. Are these belts resistant to chemicals and oils?
The PVC impregnation provides a high level of resistance to various chemicals, moisture, and oils commonly found in mining environments.
7. Do you provide samples for safety certification testing?
Yes, we can provide samples of our PVC flame retardant belts for your local mine safety authority or internal technical evaluations.
