Hebei BAO’s Patterned Anti-Skid Conveyor Belts are designed to significantly increase the coefficient of friction between the belt and the material, enabling the transport of bulk materials on steeper inclines compared to smooth general-purpose belts. Our patterned belts are constructed with three parts: the patterned rubber cover (working face), the plain rubber cover (non-working face), and the belt core. These belts are highly effective for transporting powdery, granular, and small lump materials, offering customized pattern designs to meet specific angle and material requirements.
Key Features
- Significantly Higher Friction
- Prevents Material Slide Back
- Durable CC/NN/EP Core Options
- Handles Steep Conveying Angles (Up to 40°)
- Customizable Pattern Heights (5-20mm)
- Wide Range of Material Applications
Applications & Industries
Sand, Gravel, and Aggregates
Effectively transports loose materials like sand and small gravel on high slopes.
Fertilizer and Chemical Powders
Used for conveying fine powdery or granular materials without slippage.
Coal and Mining Preparation
Handles coal, minerals, and packaged materials in transfer and sorting applications.
Food and Grain Processing
Ideal for moving grains, seeds, and small lump packaged materials on inclines.
Product Types and Features
As a specialized custom solution provider, Hebei Boao views theese figures as performance
benchmarks. We provide precision engineering, meaning the followinig parameters are fully
negotiable and will be fine-tuned to your exact project needs: BeltCore Materials (CC,NN,EP), Belt Width (300 mm to 800 mm), Pattern Height (5 mm to 20 mrm), and the Pattern Shape itself. Our final product is certified to meet your unique specifications, ensuring optimized capacity and minimal rollback on steep inclines.
| Parameter | Value | Unit | Note | |||
|---|---|---|---|---|---|---|
| Belt Core Materials | CC | NN | EP | - | Customizable based on strength requirements | |
| Belt Width | 300-800 | mm | General range for pattern applications | |||
| Conveying Angle | 0-40 | degrees | Max effective angle depends on material and pattern shape | |||
| Pattern Height Range | 5 | 10 | 15 | 20 | mm | Customizable based on material lump size |
| Pattern Shape | Chevron | Diamond | Cleated | - | And other shapes available upon request |

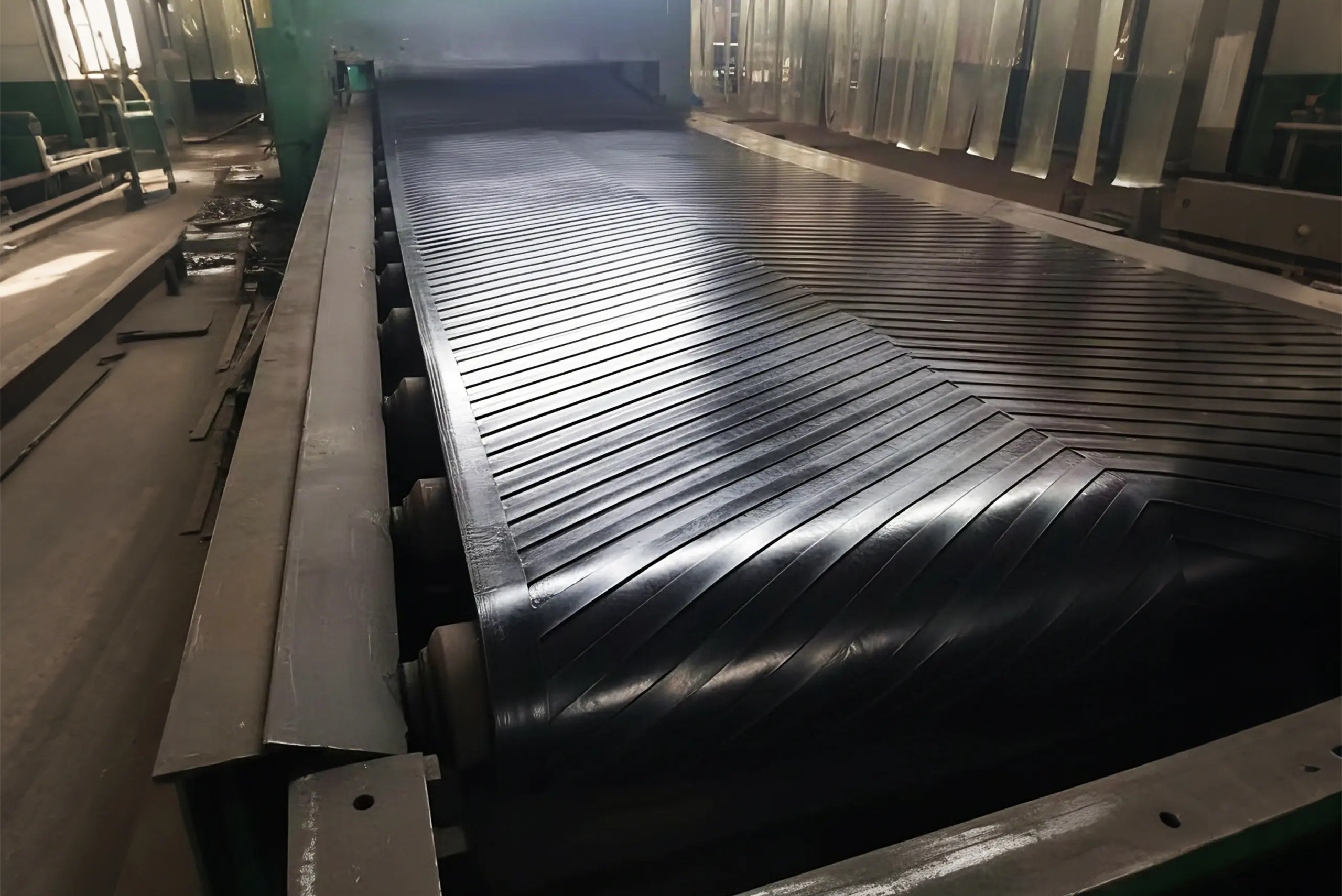

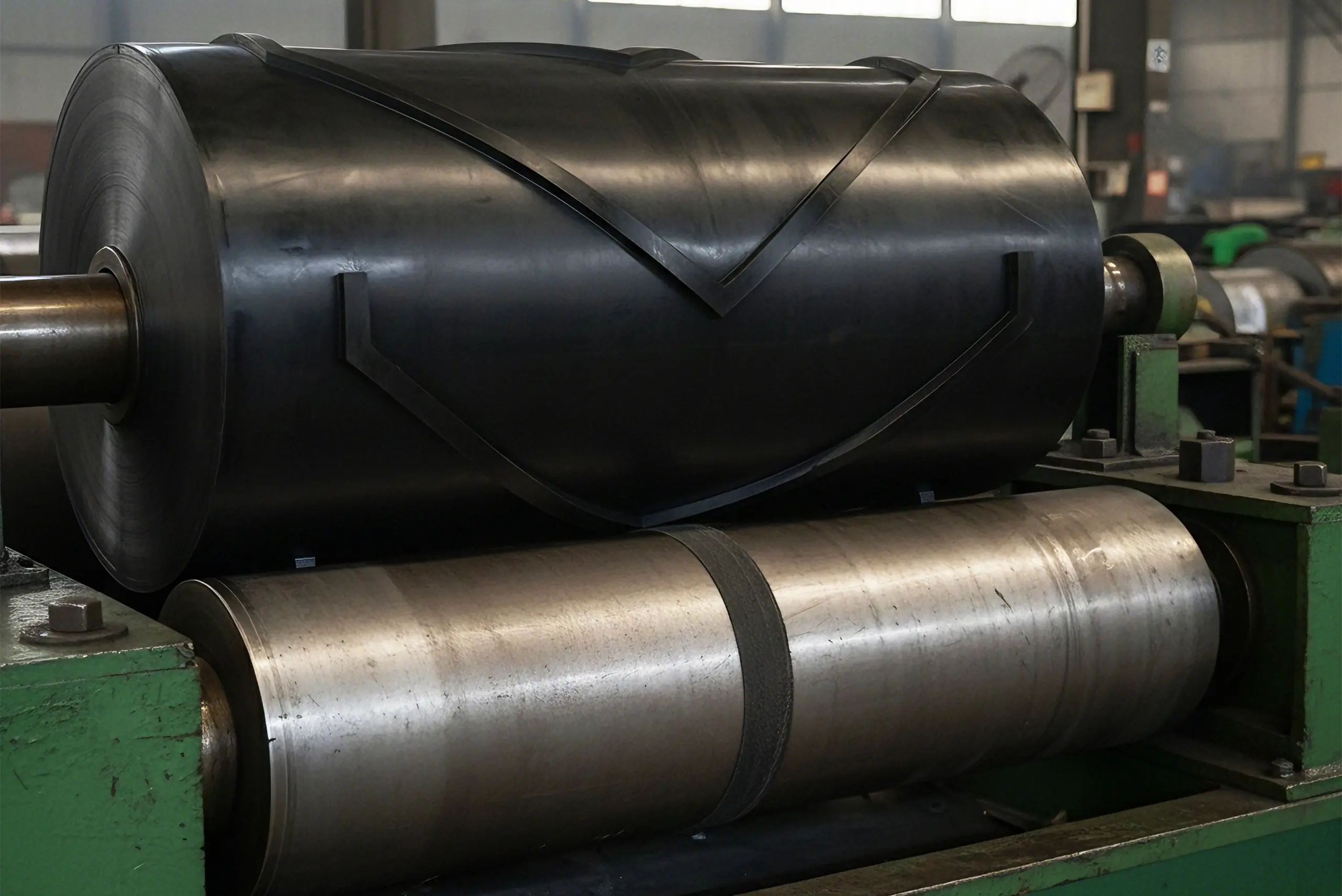

Chevron Anti-Skid Conveyor Belt

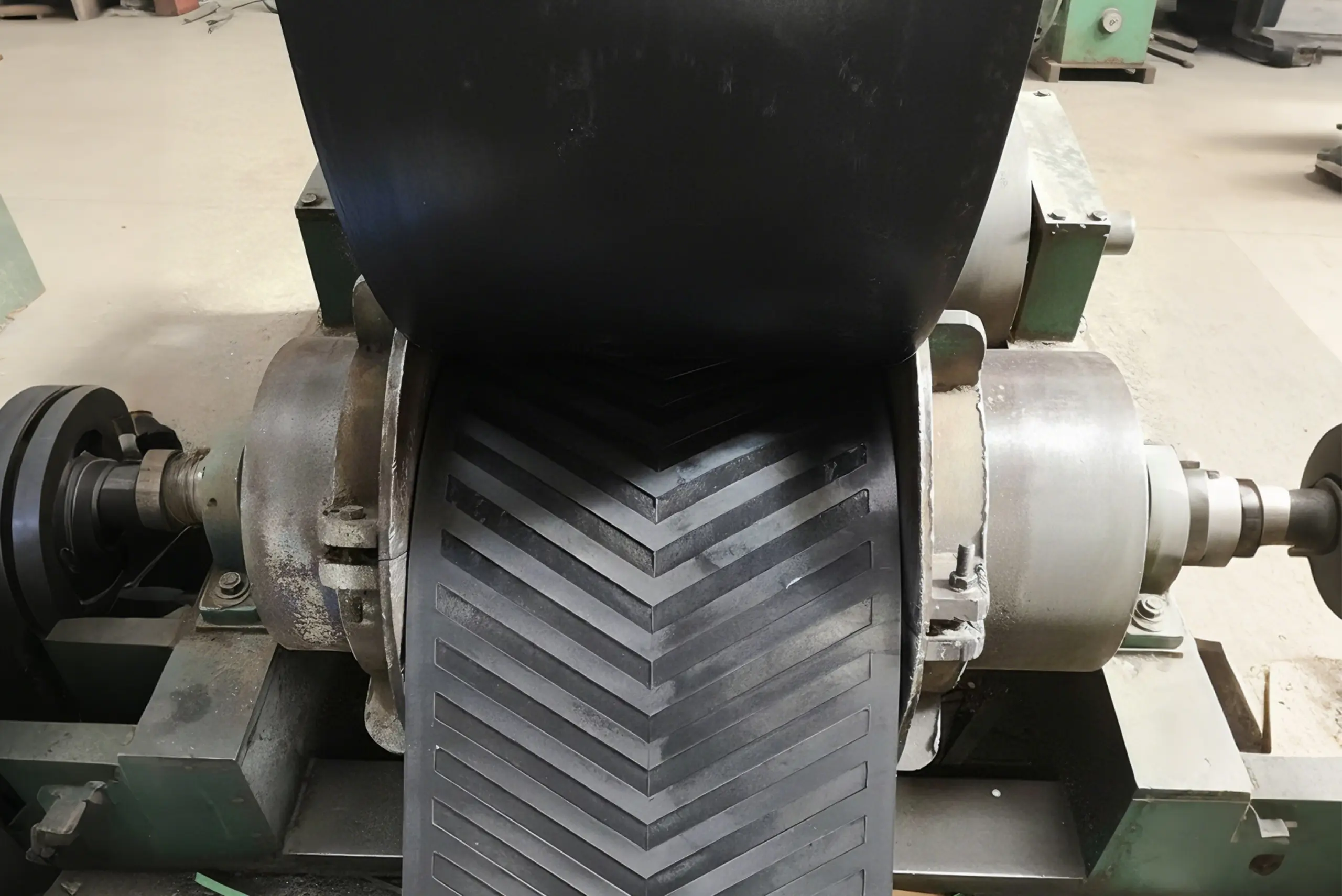

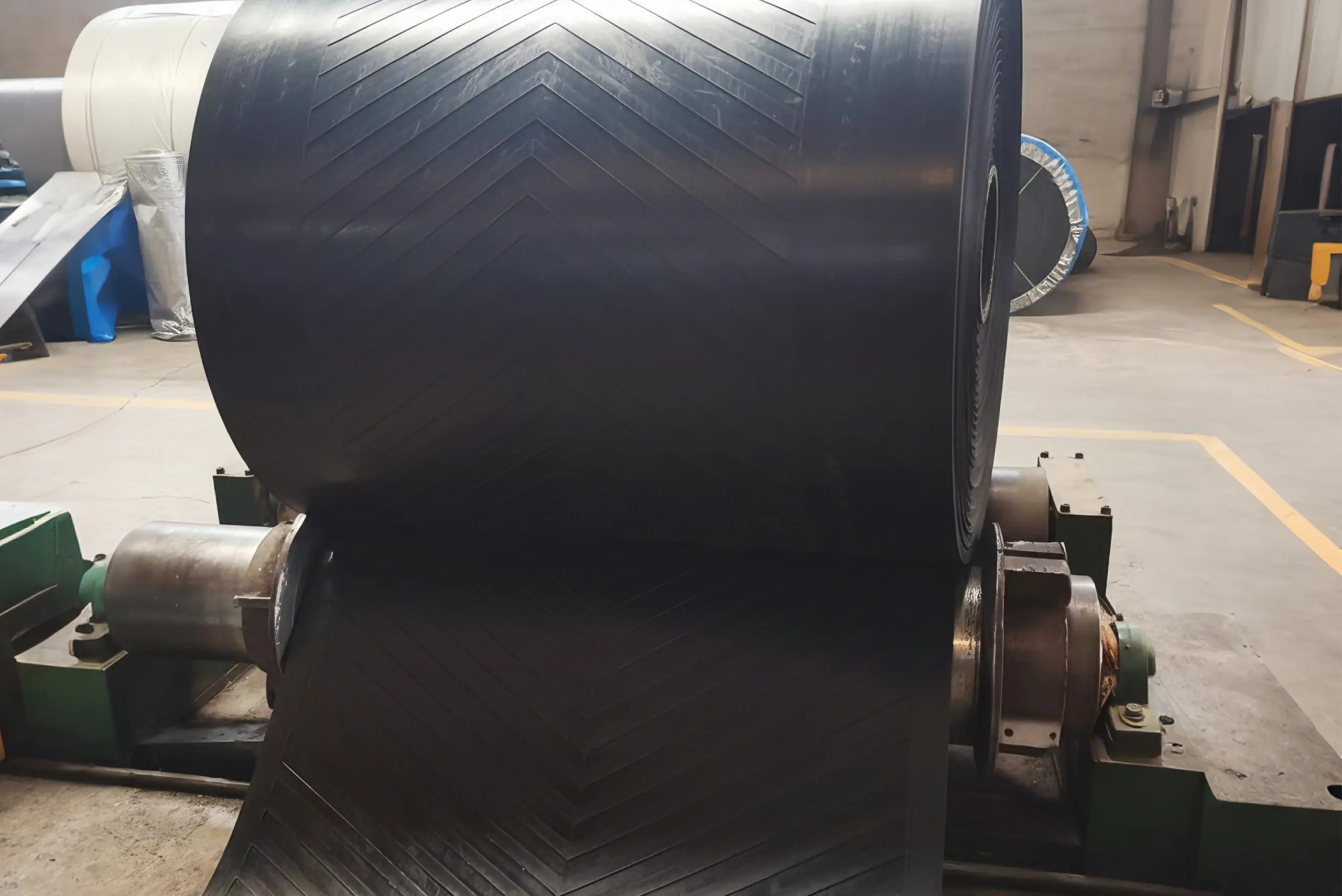

The Chevron pattern is the most common and versatile anti-skid design, characterized by V-shaped patterns arranged in continuous rows. This pattern creates a contained pocket, significantly increasing the grip and allowing transport at angles up to 40°. The open design of the chevron pattern facilitates easy discharge and prevents material from getting trapped in the pattern. These belts are ideal for powdery, granular, and small lump materials, offering superior drainage and self-cleaning capabilities.
| Parameter | Value | Unit | Note |
|---|---|---|---|
| Core Fabric Type | CC, NN, or EP | - | Customizable based on strength and stretch requirements |
| Standard Belt Widths | 400, 500, 650, 800 | mm | Common widths for anti-skid applications |
| Max Conveying Angle | 0-40 | degrees | Max effective angle depends on material (powdery/granular) |
| Standard Pattern Height | 5, 10, 15, 20 | mm | Customizable based on material lump size |
| Pattern Shape | V-Shape (Chevron) | - | Most versatile and common pattern |
| Tensile Strength Grade | EP100 to EP400 | N/mm | Customizable based on conveyor length and capacity needs |
| Conveying Angle | Material Type | Pattern Height Recommendation | Note |
|---|---|---|---|
| <= 18 degrees | Powdery or Fine Granular | 5mm to 10mm | Near limit for smooth belts |
| 18 - 30 degrees | Granular or Small Lumps | 10mm to 15mm | Optimal working range for Chevron pattern |
| 30 - 40 degrees | Small Lumps or Packaged Goods | 15mm to 20mm | Maximum angle for specialized applications |
Diamond Anti-Skid Conveyor Belt
The Diamond pattern features small, repeating rhombus shapes. This pattern is often used for conveying packaged materials, sacks, or smaller, drier granular materials on moderate slopes, where consistent friction across the width is required.
Cleated Anti-Skid Conveyor Belt
The Cleated pattern uses raised, straight bars perpendicular to the belt's travel direction. This pattern is primarily used for handling large lumps, packages, or wet, sticky materials where the bars physically prevent material from sliding back.
BAO Manufacturing and QC Authority
BAO is an established, large-scale manufacturer rooted in the Boye Industrial Hub, specializing in advanced heavy-duty conveyor systems since 1980. We integrate proprietary R&D and large-format production capacity up to 3300mm to deliver high-quality, technically demanding belting solutions globally.
Customized Process
01
Define Requirements
Client submits all necessary parameters: belt type, ply count, width, and specific environmental details for analysis.
02
Engineering Design
Our engineering team validates technical feasibility and designs the optimal carcass and rubber compound structure.
03
Material Validation
Raw materials are validated in our in-house lab to confirm integrity and performance before production commences.
04
Controlled Production
Manufacturing proceeds under strict QC protocols, utilizing high-capacity presses for a reliable, continuous supply.
05
Final Quality Check
Finished product undergoes comprehensive dimensional and physical property testing to verify compliance with order specifications.
06
Certified Delivery
Product is delivered with a complete quality inspection report, backed by long-term technical support services.
FAQs
1. What is the maximum inclination angle achievable with a patterned belt?
Our patterned belts are effective for transporting materials on angles up to 40°, depending on the material's characteristics and the pattern depth.
2. Can I get a Chevron pattern belt with an EP core?
Yes, the belt core materials are customizable and include CC (Cotton), NN (Nylon), and EP (Pollyester).
3. How do I choose the correct pattern height?
The pattern height should be chosen based on the size of the material. For example, larger lump materials require a higher pattern (like 15mm or 20mm).
4. What is the difference between the working face and non-working face?
The working face is the patterned rubber cover that carries the material. The non-working face is the plain rubber cover that contacts the idlers.
5. Is the pattern only suitable for powdery materials?
No, the belts are suitable for transporting powdery, granular, and little lump materials, or even packaged materials.
6. Does the pattern affect the belt's overall service life?
The patterned cover is subject to higher wear on the ridges. However, using high-quality rubber compounds ensures long service life comparable to standard GP belts.
7. What information do you need for a customized pattern quote?
We require the maximum conveying angle, the material's bulk density, the required tonnage capacity, and the desired Pattern Height.
