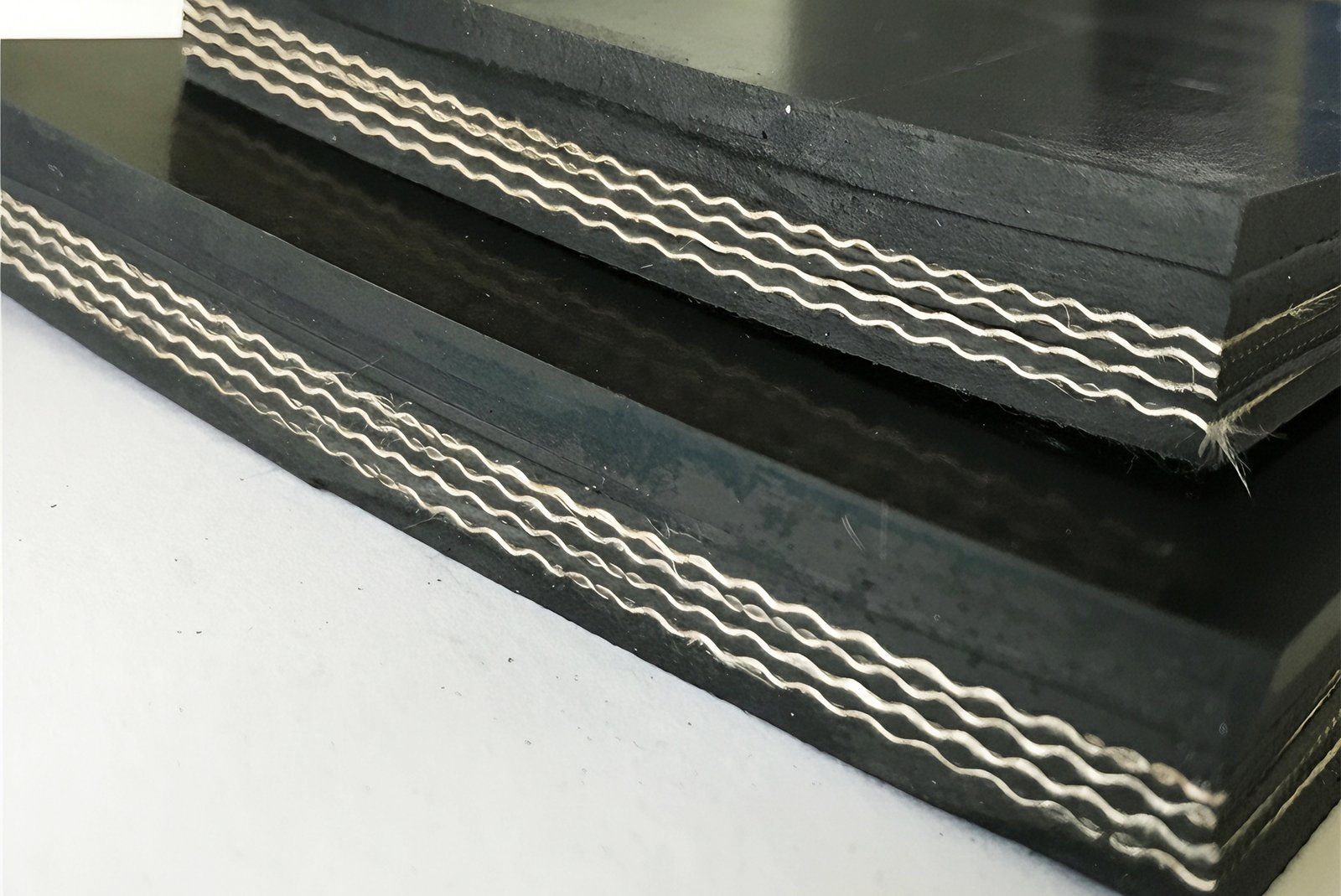

Hebei BAO’s NN Conveyor Belts are engineered with both warp and weft fibers made of Nylon, providing exceptional resistance to impact, fatigue, and damage. While featuring a higher working elongation than EP, NN belts offer superior flexibility and excellent resistance to groove formation and mechanical damage. This makes them perfectly suited for applications involving frequent heavy material drop heights, sharp impact, and installations with shorter radius curves. NN belts are a highly durable and cost-efficient option for tough environments.
Key Features
- Extremely High Impact Resistance
- Excellent Transverse Flexibility
- Good Resistance to Acids
- Superior Tear and Rip Stops
- High Tensile Fatigue Resistance
- Simple and Quick Splicing
Applications & Industries
Quarry and Stone Crushing
Designed to absorb heavy impact from dropped rock and aggregate materials effectively.
Fertilizer Production
The nylon carcass offers better resistance to mild acids and corrosive chemical dust.
Mobile Crushing Plants
Superior flexibility allows NN belts to navigate the frequent twists and turns of mobile systems.
Iron Ore and Slag
Handles sharp, abrasive material impacts efficiently, reducing belt wear and replacement frequency.
NOTE ON TECHNICAL DATA: The figures presented in the following tables outline our standard performance benchmarks and manufacturing capabilities. As a custom solution provider, Boao specializes in precision engineering; cover thickness, ply count, and rubber grade are all final negotiable parameters which will be customized and certified to meet your exact project specifications and required standards.
| Parameter | Unit | DIN Standard Requirements | Boao Standard Performance |
|---|---|---|---|
| Belt Type | - | NN (Nylon/Nylon) | NN 100 to NN 630 N/mm |
| Fabric Composition | - | Nylon Warp / Nylon Weft | High strength and elasticity |
| Max Ply Count | Ply | Limited by flexibility and thickness | <= 6 plies (Standard) |
| Cover Rubber Tensile Strength | MPa | DIN 22102 Grade W/Y | >= 18 MPa |
| Working Elongation | % | Moderate elastic requirement | 2.5% to 4.0% (Nominal) |
| Abrasion Loss | mm³ | DIN 22102 Grade W | <= 90 mm³ (Recommended Grade) |
| Ply Adhesion | N/mm | Minimum DIN 22102 | >= 4.0 N/mm |
| Max Trough Angle | ° | Varies by ply count and width | Up to 45° (Excellent) |
BAO Manufacturing and QC Authority
BAO is an established, large-scale manufacturer rooted in the Boye Industrial Hub, specializing in advanced heavy-duty conveyor systems since 1980. We integrate proprietary R&D and large-format production capacity up to 3300mm to deliver high-quality, technically demanding belting solutions globally.
Customized Process
01
Define Requirements
Client submits all necessary parameters: belt type, ply count, width, and specific environmental details for analysis.
02
Engineering Design
Our engineering team validates technical feasibility and designs the optimal carcass and rubber compound structure.
03
Material Validation
Raw materials are validated in our in-house lab to confirm integrity and performance before production commences.
04
Controlled Production
Manufacturing proceeds under strict QC protocols, utilizing high-capacity presses for a reliable, continuous supply.
05
Final Quality Check
Finished product undergoes comprehensive dimensional and physical property testing to verify compliance with order specifications.
06
Certified Delivery
Product is delivered with a complete quality inspection report, backed by long-term technical support services.
FAQs
1. Why should I choose an NN belt over an EP belt?
Choose NN if your primary concern is high-impact resistance and flexibility, as NN absorbs impact better due to its higher working elasticity.
2. What is the main drawback of NN belts?
The main drawback is a higher working elongation (stretch) compared to EP, meaning they may require more frequent take-up adjustments, especially on new belts.
3. Are NN belts better for portable or mobile conveyors?
Yes, the superior transverse flexibility of NN makes it ideal for portable or mobile conveyors that require frequent re-routing and have small diameter pulleys.
4. How is the rubber compound different for NN belts?
The rubber compound for NN belts is often formulated to enhance anti-tear properties and impact dampening, complementing the nylon carcass strength.
