Our High-Tensile Fabric Conveyor Belts, primarily utilizing EP (Polyester) and NN (Nylon) fabrics, are engineered for heavy-duty industrial applications requiring extreme durability and reliable power transmission. These belts feature premium rubber covers with tensile strengths ranging from 15 MPa to 24 MPa, ensuring superior resistance to abrasion and tearing. With a manufacturing capacity of up to 3300mm in width and a strictly controlled quality process, Boao ensures that every high-tensile belt provides optimal stability for transporting lump, granular, and powdery materials.
Key Features
- Superior Tensile Strength
- Low Operational Elongation
- Excellent Impact Resistance
- Enhanced Abrasion Endurance
Applications & Industries
Hard Rock Mining
Reliable transport of large lumps and sharp rocks in primary crushing stages.
Metallurgical Processing
Durable handling of ores and raw materials in high-stress metallurgical environments.
Power Generation
Efficiently moves coal and powdery materials for ground-based energy production facilities.
Port Cargo Terminals
Supports high-volume bulk material handling for international logistics and maritime trade.
NOTE ON TECHNICAL DATA: As a specialized custom solution provider, Hebei Boao views these specifications as performance benchmarks. We provide precision engineering, meaning parameters such as Belt Width (up to 3300mm), Cover Thickness (up to 10mm), Ply Count (1-10 plies), and Rubber Grade (15-24 MPa) are fully negotiable. Every high-tensile belt is validated in our in-house laboratory to ensure it meets international standards for tensile strength and abrasion loss.
| Parameter | Metric Range | Unit |
|---|---|---|
| Fabric Core Type (EP) | EP100, EP150, EP200, EP250, EP300, EP400, EP500 | - |
| Fabric Core Type (NN) | NN100, NN150, NN200, NN250, NN300, NN400, NN500 | - |
| Standard Belt Width | 100 - 3000 | mm |
| Maximum Width Capability | Below 3300 | mm |
| Fabric Ply Count | 1 - 10 | Ply |
| Top Cover Thickness | 0 - 10 | mm |
| Bottom Cover Thickness | 0 - 6 | mm |
| Applicable Standards | GB/T10822-2014, DIN 22102, ISO | - |
| Cover Property Grade | Tensile Strength (MPa) | Breaking Elongation (%) | Abrasion Loss (mm3) |
|---|---|---|---|
| H (Premium) | >= 24.0 | >= 450 | <= 120 |
| D (Standard) | >= 18.0 | >= 400 | <= 100 |
| L (Economic) | >= 15.0 | >= 350 | <= 200 |
| Custom High-Tensile | >= 20.0 | >= 400 | <= 150 |
| Item | Hardness Change (IRHD) | Strength Change (%) | Elongation Change (%) |
|---|---|---|---|
| Class T1 (100C) | +20 | -25 | -50 |
| Class T2 (125C) | +20 | -30 | -50 |
| Class T3 (150C) | +/- 20 | -40 | -55 |
| Class T4 (175C) | +/- 20 | -40 | -55 |
BAO Manufacturing and QC Authority
BAO is an established, large-scale manufacturer rooted in the Boye Industrial Hub, specializing in advanced heavy-duty conveyor systems since 1980. We integrate proprietary R&D and large-format production capacity up to 3300mm to deliver high-quality, technically demanding belting solutions globally.
Customized Process
01
Define Requirements
Client submits all necessary parameters: belt type, ply count, width, and specific environmental details for analysis.
02
Engineering Design
Our engineering team validates technical feasibility and designs the optimal carcass and rubber compound structure.
03
Material Validation
Raw materials are validated in our in-house lab to confirm integrity and performance before production commences.
04

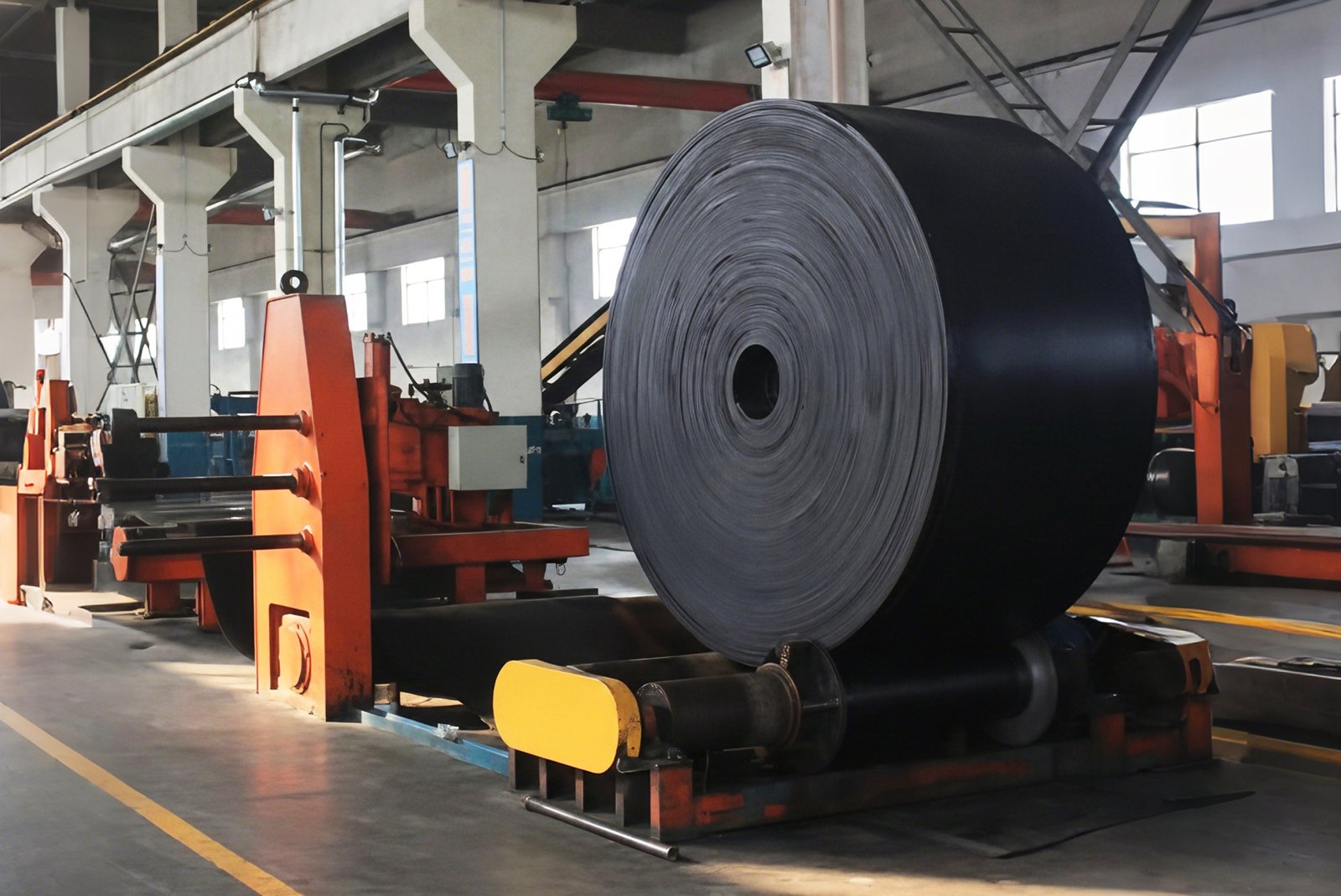

Controlled Production
Manufacturing proceeds under strict QC protocols, utilizing high-capacity presses for a reliable, continuous supply.
05
Final Quality Check
Finished product undergoes comprehensive dimensional and physical property testing to verify compliance with order specifications.
06
Certified Delivery
Product is delivered with a complete quality inspection report, backed by long-term technical support services.
FAQs
1. Is MPa related to the strength of the belt core?
No. MPa refers to the tensile strength of the rubber cover. The strength of the belt core (carcass) is measured in N/mm (e.g., EP200).
2. What is the benefit of an EP carcass over NN?
EP fabric offers much lower working elongation than NN, making it the preferred choice for long conveyors where belt stretch must be minimized.
3. What standard does Boao use for fire resistance testing?
Our products can be certified according to GB/T10822-2014, which includes rigorous tests for flame duration and static conductivity.
4. How many plies can be integrated into the belt?
We can customize the belt structure with anywhere from 1 to 10 plies of fabric, depending on the required tension and load.
