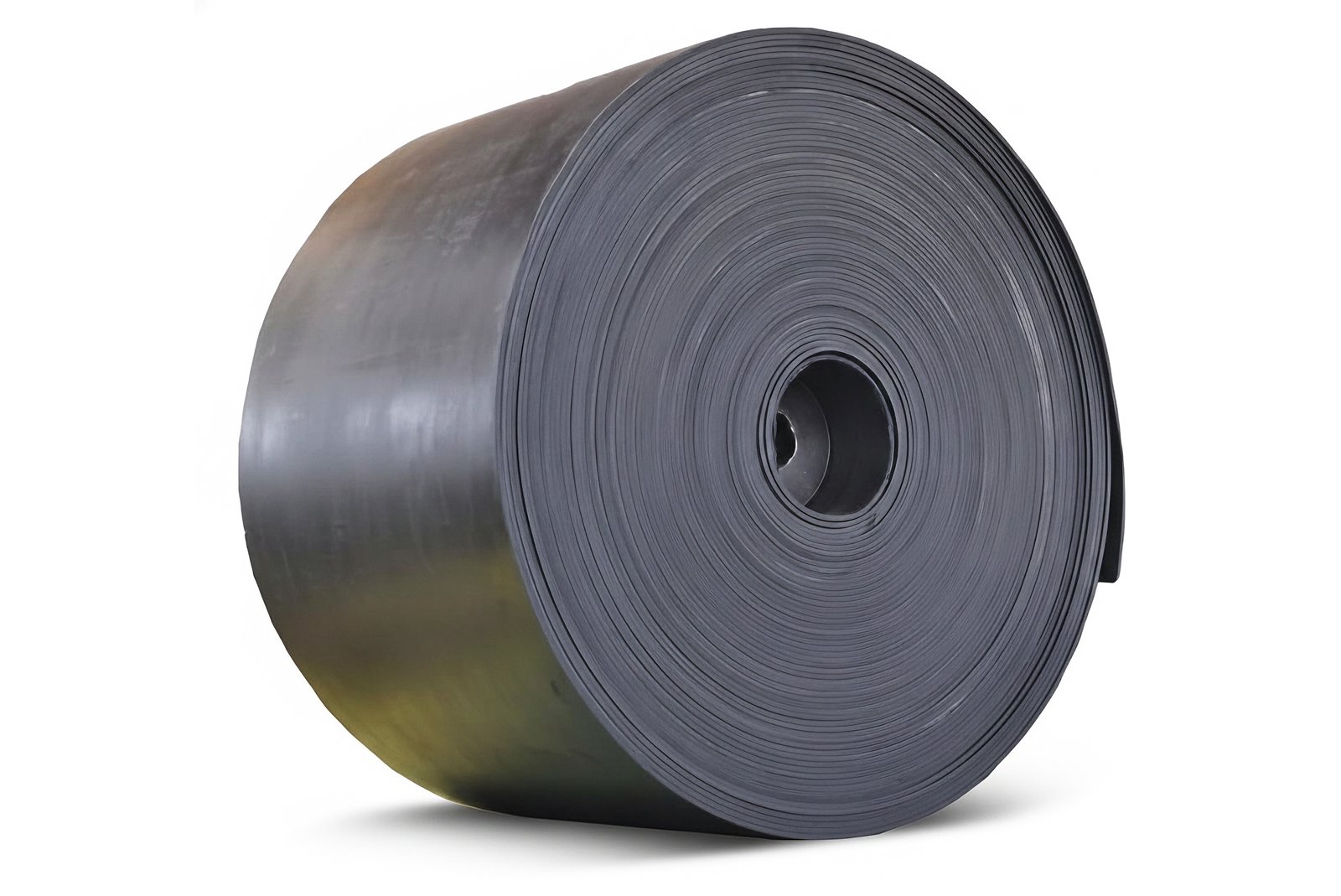

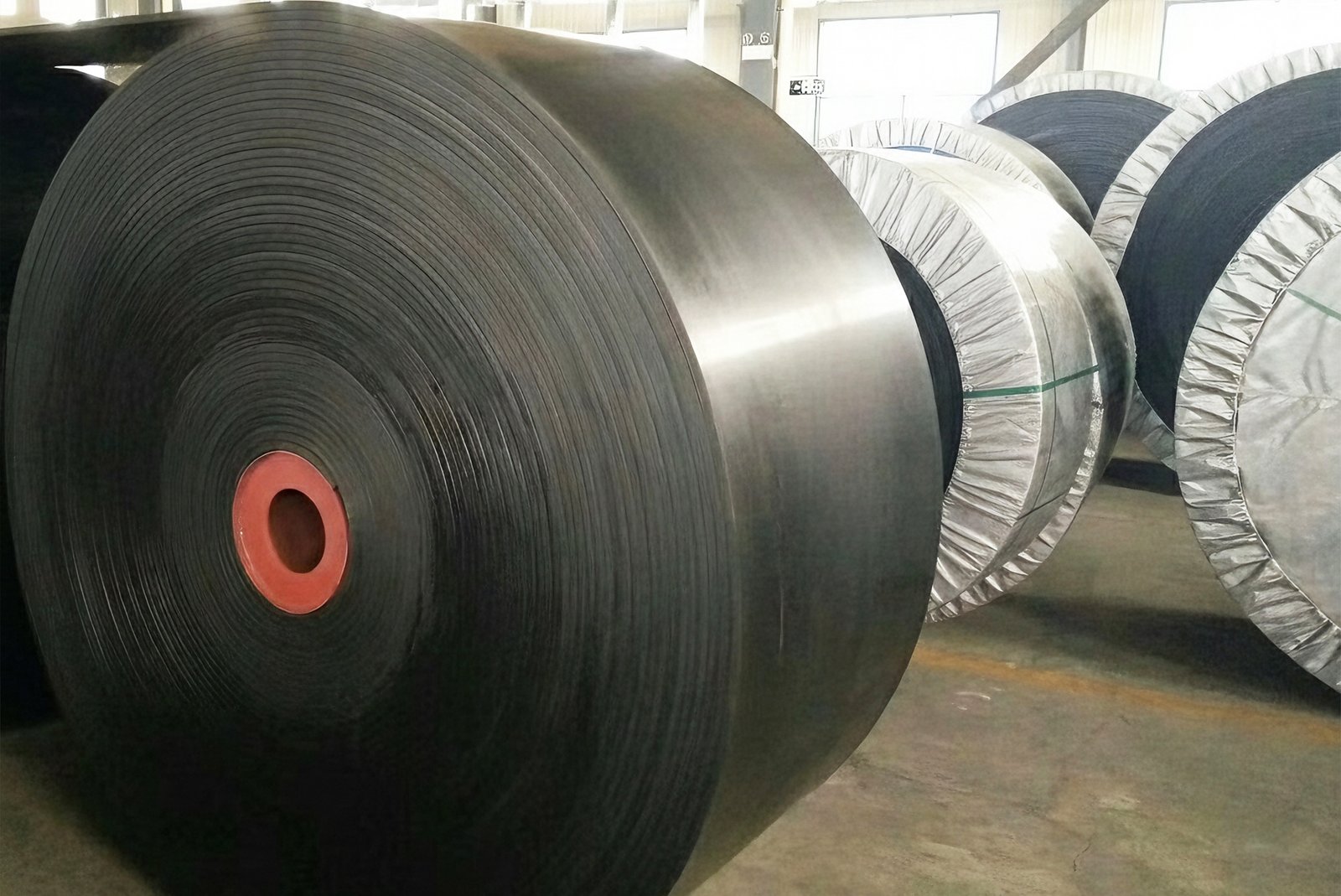

COTTON CANVAS (CC) CONVEYOR BELTS: FOUNDATION FOR RELIABILITY
General Purpose Conveyor Belts—defined by their durable Cotton Canvas (CC) core—are the traditional and cost-effective solution for basic bulk material transport. As a foundational product in heavy industry for decades, the CC belt offers reliable load support, simple maintenance, and excellent troughing characteristics. Hebei BAO leverages 40 years of consistent manufacturing practice to ensure these belts provide superior ply adhesion and the consistent performance required for standard, medium-load industrial environments.
Key Features
- Proven Traditional Design
- Excellent Fastener Retention
- Superior Troughing Capability
- High Transverse Rigidity
- Simple Maintenance Access
- Economical Bulk Handling
Applications & Industries

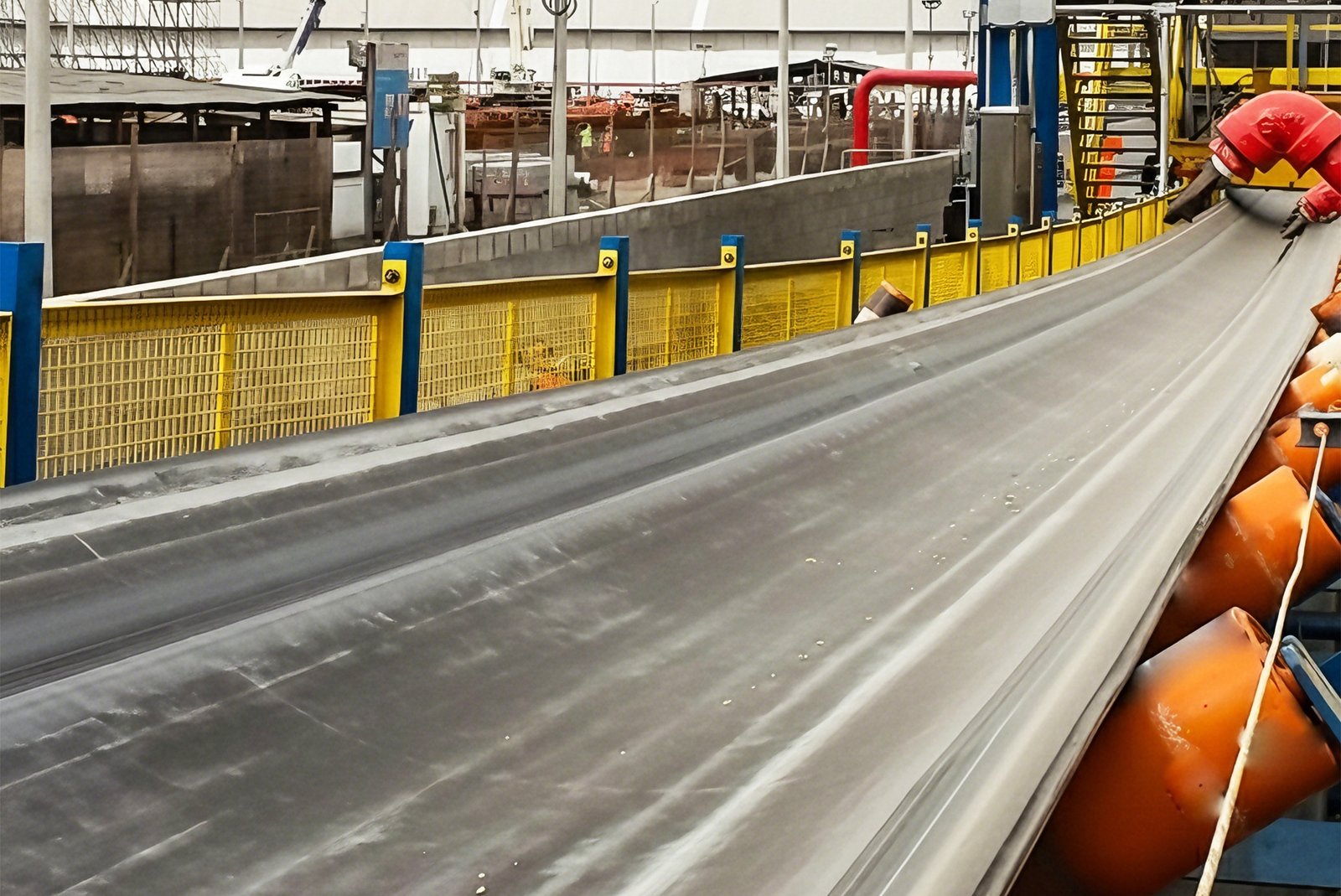

Mining and Quarry
Cost-efficiently moves crushed stone, sand, and various mined materials over short distances.
Cement and Aggregate
Reliable transport of cement, clinker, and general aggregates within process facilities.
Basic Industrial Use
Ideal for general-purpose package and bulk material handling in factory settings.
Agriculture and Grain
Used for conveying seed, fertilizer, and general grain products in processing plants.
NOTE ON TECHNICAL DATA: The figures presented in the following tables outline our standard performance benchmarks and manufacturing capabilities. As a custom solution provider, Boao specializes in precision engineering; cover thickness, ply count, and rubber grade are all final negotiable parameters which will be customized and certified to meet your exact project specifications and required standards.
| Parameter | Unit | CC Canvas Standard | Boao Standard Performance |
|---|---|---|---|
| Belt Type | - | Cotton Canvas (CC) | CC 100 to CC 300 N/mm |
| Carcass Fabric | - | Warp/Weft breaking strength ratio | Min. 100 N/mm per ply |
| Max Ply Count | Ply | Limited by flexibility and thickness | <= 6 plies (Standard) |
| Cover Rubber Tensile Strength | MPa | General Purpose Grade | >= 15 MPa |
| Cover Rubber Elongation | % | General Purpose Grade | >= 350% |
| Abrasion Loss | mm³ | Standard Grade | <= 200 mm³ |
| Ply Adhesion | N/mm | Minimum Industry Standard | >= 4.0 N/mm |
| Total Belt Thickness | mm | Varies by order | 6mm to 25mm |
BAO Manufacturing and QC Authority
BAO is an established, large-scale manufacturer rooted in the Boye Industrial Hub, specializing in advanced heavy-duty conveyor systems since 1980. We integrate proprietary R&D and large-format production capacity up to 3300mm to deliver high-quality, technically demanding belting solutions globally.
Customized Process
01
Define Requirements
Client submits all necessary parameters: belt type, ply count, width, and specific environmental details for analysis.
02
Engineering Design
Our engineering team validates technical feasibility and designs the optimal carcass and rubber compound structure.
03
Material Validation
Raw materials are validated in our in-house lab to confirm integrity and performance before production commences.
04
Controlled Production
Manufacturing proceeds under strict QC protocols, utilizing high-capacity presses for a reliable, continuous supply.
05
Final Quality Check
Finished product undergoes comprehensive dimensional and physical property testing to verify compliance with order specifications.
06
Certified Delivery
Product is delivered with a complete quality inspection report, backed by long-term technical support services.
FAQs
1. Why should I choose a CC belt over an EP belt?
CC belts are more economical for short-distance, low-tension applications where high heat or extremely low stretch is not a primary concern.
2. Can I customize the cover rubber compound?
Yes, we offer customization for heat resistance HR, oil resistance OR, fire resistance FR, and specific abrasion grades.
3. What is the minimum recommended pulley diameter?
The minimum diameter depends on the carcass ply rating and belt thickness; we provide detailed calculations upon project specification review.
4. Do you offer installation or splicing guidance?
Yes, we provide comprehensive cold and hot splicing instructions and kits, and our technical team offers remote support.
5. Is a minimum order quantity (MOQ) required?
While we support large orders, we are flexible and can discuss minimum lengths based on your specific belt width and ply count requirements.
6. Can I upgrade this belt to be fire-resistant?
For fire resistance, we recommend upgrading to our specialized EP or NN core belts with compliant fire-retardant rubber compounds.
7. Is the CC belt easy to splice in the field?
Yes, due to the high cotton content, the CC carcass is one of the easiest belt types to splice, either through cold vulcanization or mechanical joining.
