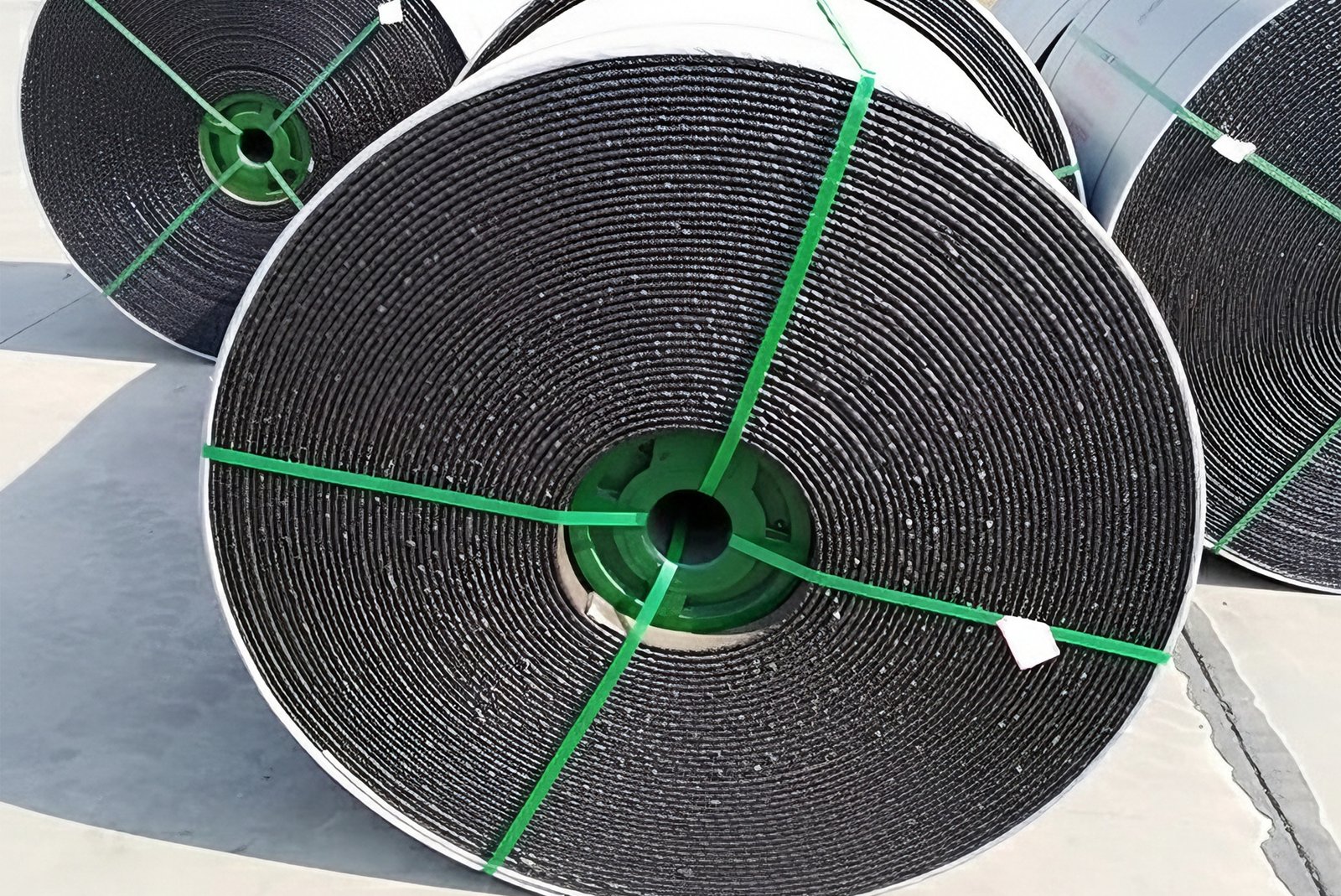

Hebei BAO’s Fabric Core Flame Retardant Belts are designed to safely transport materials in environments where fire and explosive risks are present, such as power plants, coal mines, and chemical industries. Manufactured according to the national standard, these belts feature specialized rubber compounds that possess self-extinguishing properties and permanent anti-static conductivity. We offer customized solutions certified across different fire-resistant grades (K1,K2, K3) to meet various safety requirements and operational demands.
Key Features
- Certified Fire Resistance (K Grades)
- High Abrasion Durability (H/D/L Grades)
- Maintains Performance Under Heat
- Permanent Anti-Static Safety
- Resistant to Chemical Corrosion
- No Reappearance of Flame
Applications & Industries
Power Plants and Utilities
Safe handling of coal and other flammable powdery materials in exposed environments.
Chemical Industries
Eliminates ignition risk when conveying corrosive and potentially explosive chemicals.
Coal Mining (Above Ground)
Used in surface preparation plants where $\text{GB/T}$ fire-resistance certification is mandated.
General Hazardous Areas
A highly reliable solution for any industrial site with flammable or explosive atmosphere.
As a specialized custom solution provider, Hebei Boao views these figures as performance benchmarks. We provide precision engineering, meaning the following parameters are fully negotiable and will be fine-tuned to your exact project needs: Belt Width, Cover Thickness, Carcass Fabric Type (EP or NN), Rubber Grade (H,D or L), and the required Fire Resistant Grade (K1，K2 or K3). Our final product is certified to meet your unique specifications, ensuring optimized performance and longevity.
| Cover Property Grade | Tensile Strength (MPa) | Breaking Elongation (%) | Abrasion Loss (mm³) |
|---|---|---|---|
| H | >= 24.0 | >= 450 | <= 120 |
| D | >= 18.0 | >= 400 | <= 100 |
| L | >= 15.0 | >= 350 | <= 200 |
| Safety Item | K1 Fire Resistant Grade | K2 Fire Resistant Grade | K3 Fire Resistant Grade | |
|---|---|---|---|---|
| Flame Duration (Total Value) | <= 45s (3 pcs with covers + 3 pcs without covers) | <= 45s (6 pcs with covers) | <= 60s (3 pcs with covers) | |
| Flame Duration (Single Value | With Covers) | <= 15s | <= 15s | N/A |
| Flame Duration (Single Value | Without Covers) | <= 20s | N/A | N/A |
| Static Conductivity Property | <= 3 x 10^8 Ohms | <= 3 x 10^8 Ohms | <= 3 x 10^8 Ohms | |
| Reappearance of Flame | Not allowed in any sample | Not allowed in any sample | Not allowed in any sample |
BAO Manufacturing and QC Authority
BAO is an established, large-scale manufacturer rooted in the Boye Industrial Hub, specializing in advanced heavy-duty conveyor systems since 1980. We integrate proprietary R&D and large-format production capacity up to 3300mm to deliver high-quality, technically demanding belting solutions globally.
Customized Process
01
Define Requirements
Client submits all necessary parameters: belt type, ply count, width, and specific environmental details for analysis.
02
Engineering Design
Our engineering team validates technical feasibility and designs the optimal carcass and rubber compound structure.
03
Material Validation
Raw materials are validated in our in-house lab to confirm integrity and performance before production commences.
04
Controlled Production
Manufacturing proceeds under strict QC protocols, utilizing high-capacity presses for a reliable, continuous supply.
05
Final Quality Check
Finished product undergoes comprehensive dimensional and physical property testing to verify compliance with order specifications.
06
Certified Delivery
Product is delivered with a complete quality inspection report, backed by long-term technical support services.
FAQs
1. What does the K grade certification mean for fire safety?
The K grade refers to the strict flame resistant classification under the Chinese national standard GB/T 10822-2014, indicating the belt's performance in preventing flame spread.
2. What is the difference between H,D, and L cover property grades?
These grades denote the physical strength and abrasion resistance of the cover rubber. H is the highest grade for tensile strength (24.0 MPa) and D offers the lowest abrasion loss (100 mm³).
3. How is the anti-static property guaranteed?
The belt is formulated with conductive materials to ensure the static conductive property remains at or below 3×10⁸ Ohms across all K grades.
4. Is this belt suitable for use in areas with high explosives?
Yes, its anti-static and non-flame reappearance properties make it suitable for flammable and explosive environments on the ground.
5. Can the cover grade and fire grade be combined?
Yes, we customize the belt by
combining the required abrasion resistance (H/D/L) with the mandated fire resistance
level (K1/K2/K3) for optimal performance.
6. What type of fabric core is used for this belt?
We typically use EP (Polyester/Nylon)
fabric cores due to their low stretch and stability, ensuring thebelt maintains excellent
tracking and dimensional integrity.
7. Is there any risk of flame reappearance after the test?
No, the GB/T standard
explicitly requires that the reappearance of flame is not allowed in any sample tested,
guaranteeing maximum safety.
