Hebei BAO is a key supplier in the conveyor belt industry, offering a comprehensive range of high-quality Conveyor Pulleys engineered to drive, redirect, and tension the conveyor belt. Pulleys are the critical components responsible for translating power into motion and managing the belt’s path. Our pulleys are designed for high load capacity, exceptional durability, and minimal deflection under stress. Featuring robust construction, superior shaft-to-shell locking, and optional rubber lagging, our pulleys ensure optimal traction, minimize belt slippage, and contribute to the system’s overall reliability and long service life.
Key Features
- High Load Bearing Capacity
- Optimized Belt Traction
- Effective Lagging Options
- Robust Shaft-to-Shell Locking
- Reduced Belt Slippage
- Minimized Shaft Deflection
Product Classification and Features

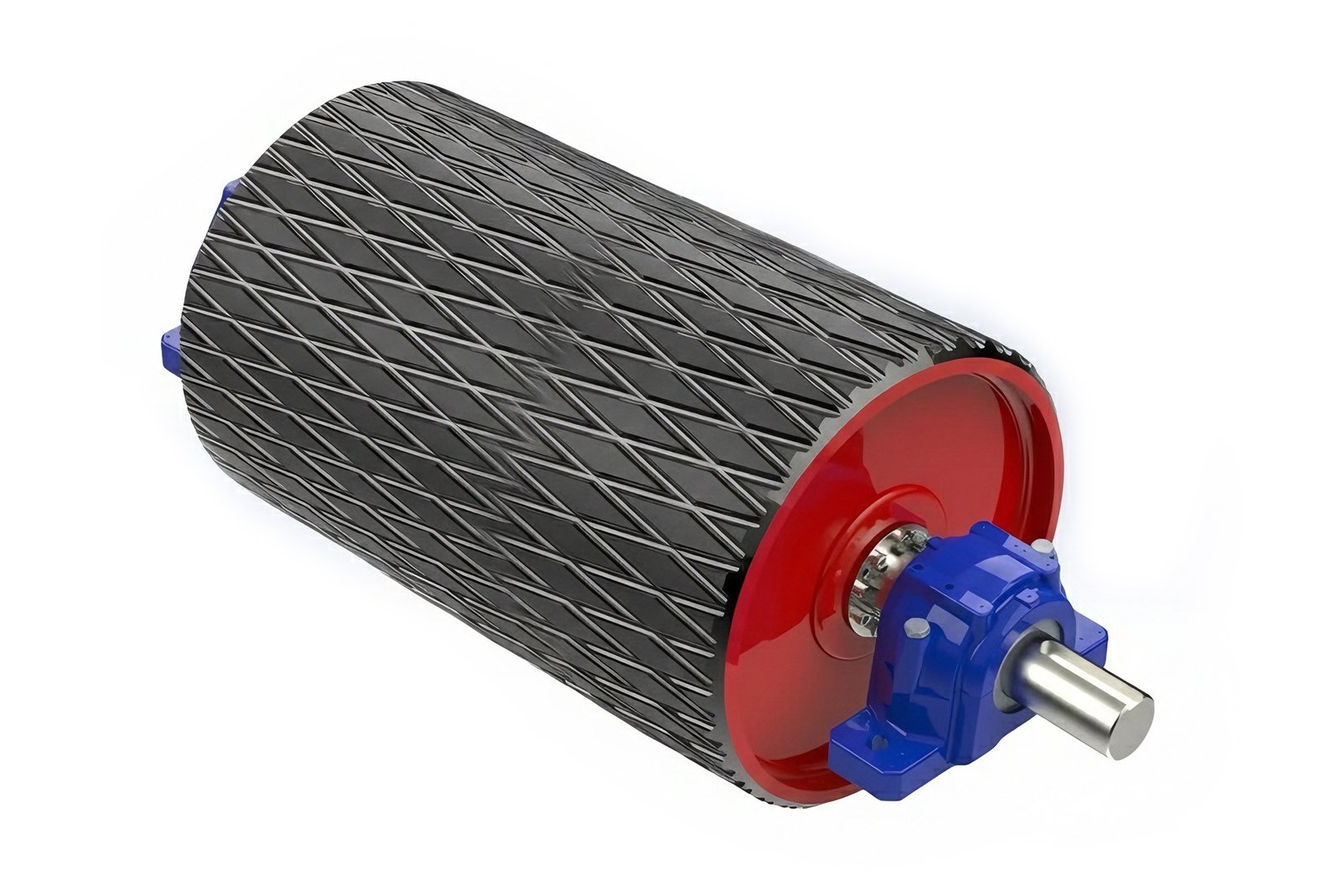

A. Drive Pulley

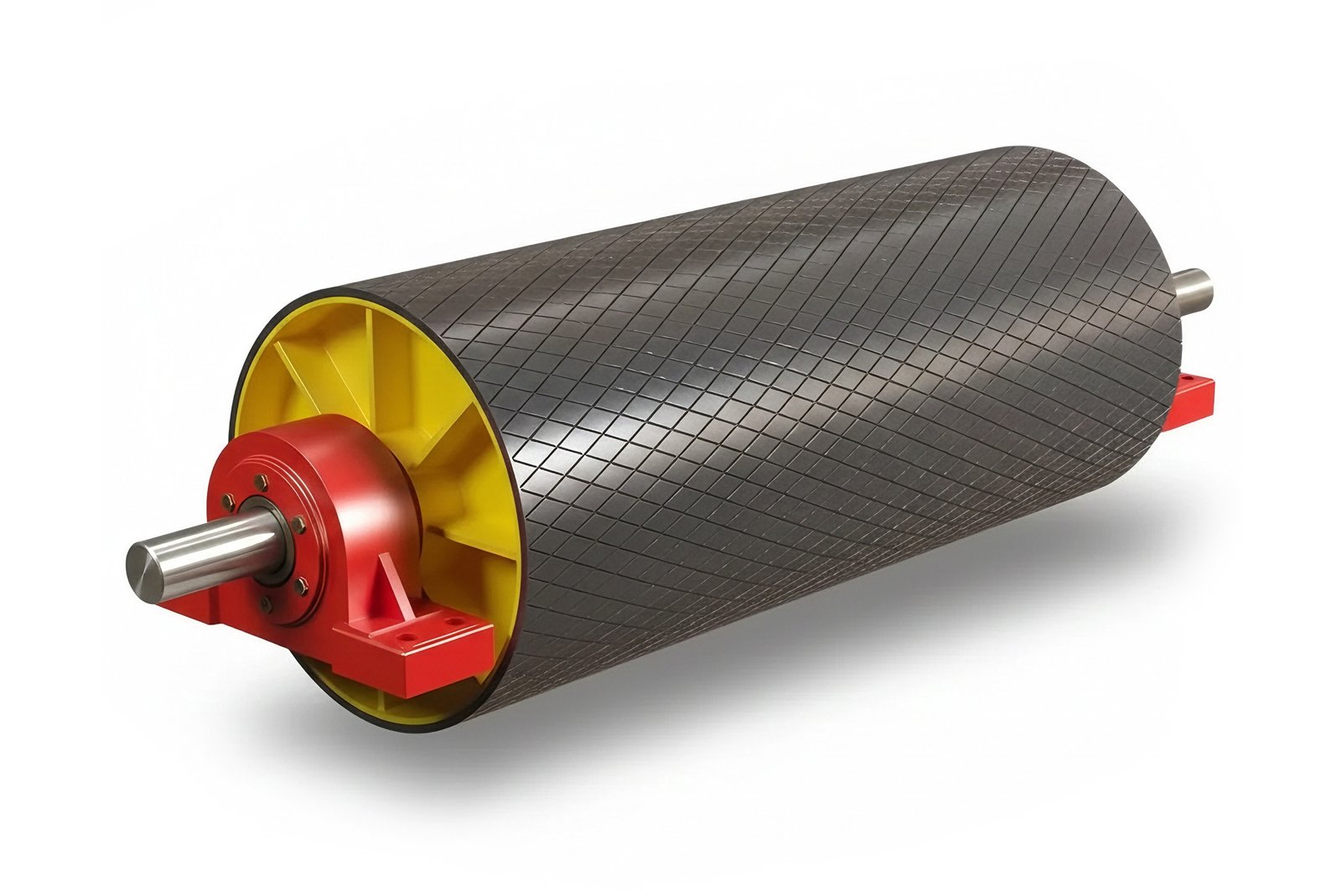

The Drive Pulley is the most critical pulley in the system, responsible for transmitting the motor's power to the conveyor belt through friction. It is often the largest pulley and requires robust construction to handle the high tension and torque forces necessary to move the material load. Drive Pulleys are typically lagged to maximize the coefficient of friction and improve traction.

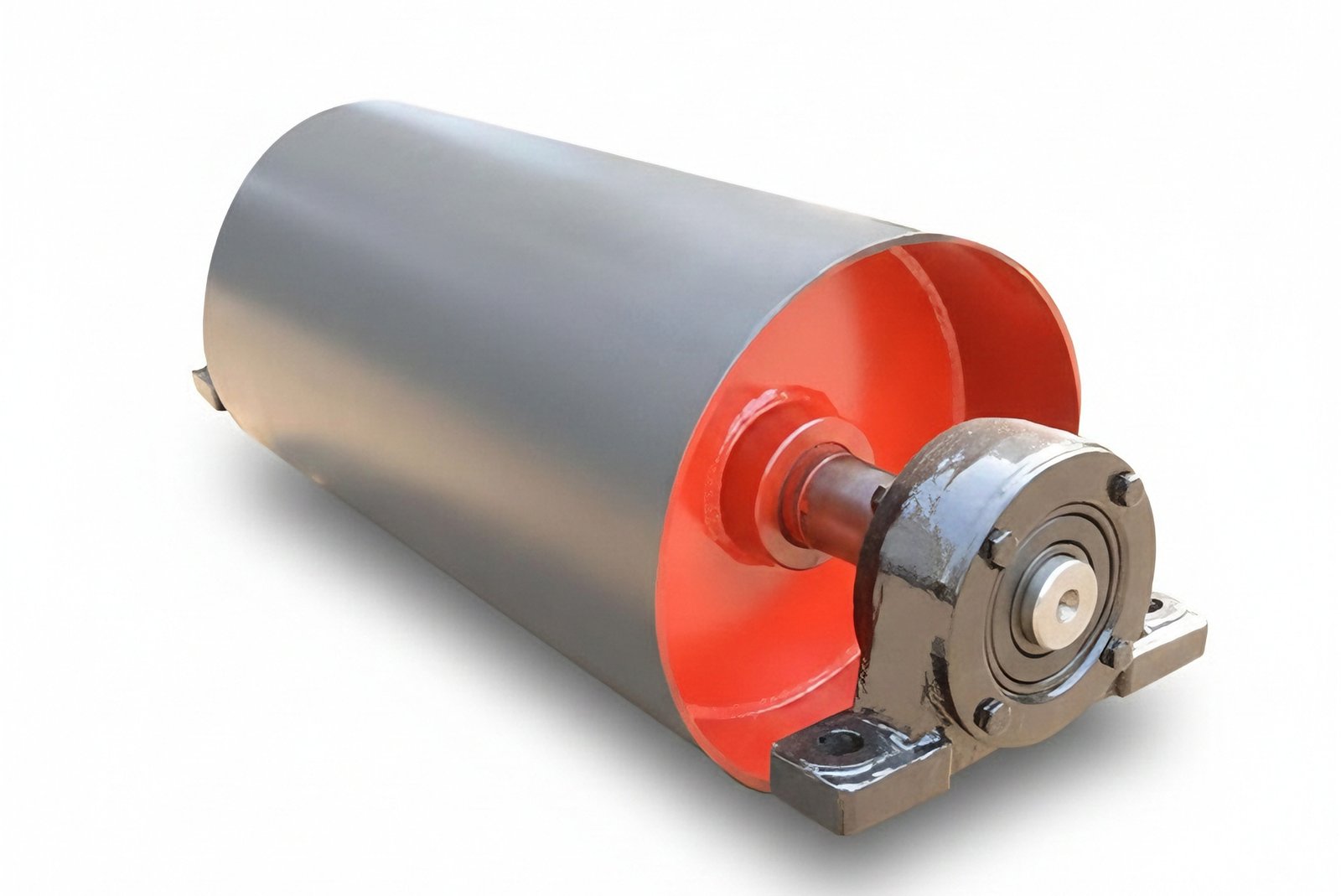

B. Bend Pulley
The Bend Pulley (also known as a Tail or Head Pulley) is primarily used to change the direction of the conveyor belt, such as at the head or tail end of the conveyor or at various points in the return path. They handle lower tension loads than the drive pulley but require precise concentricity to ensure smooth belt tracking and minimize stress.

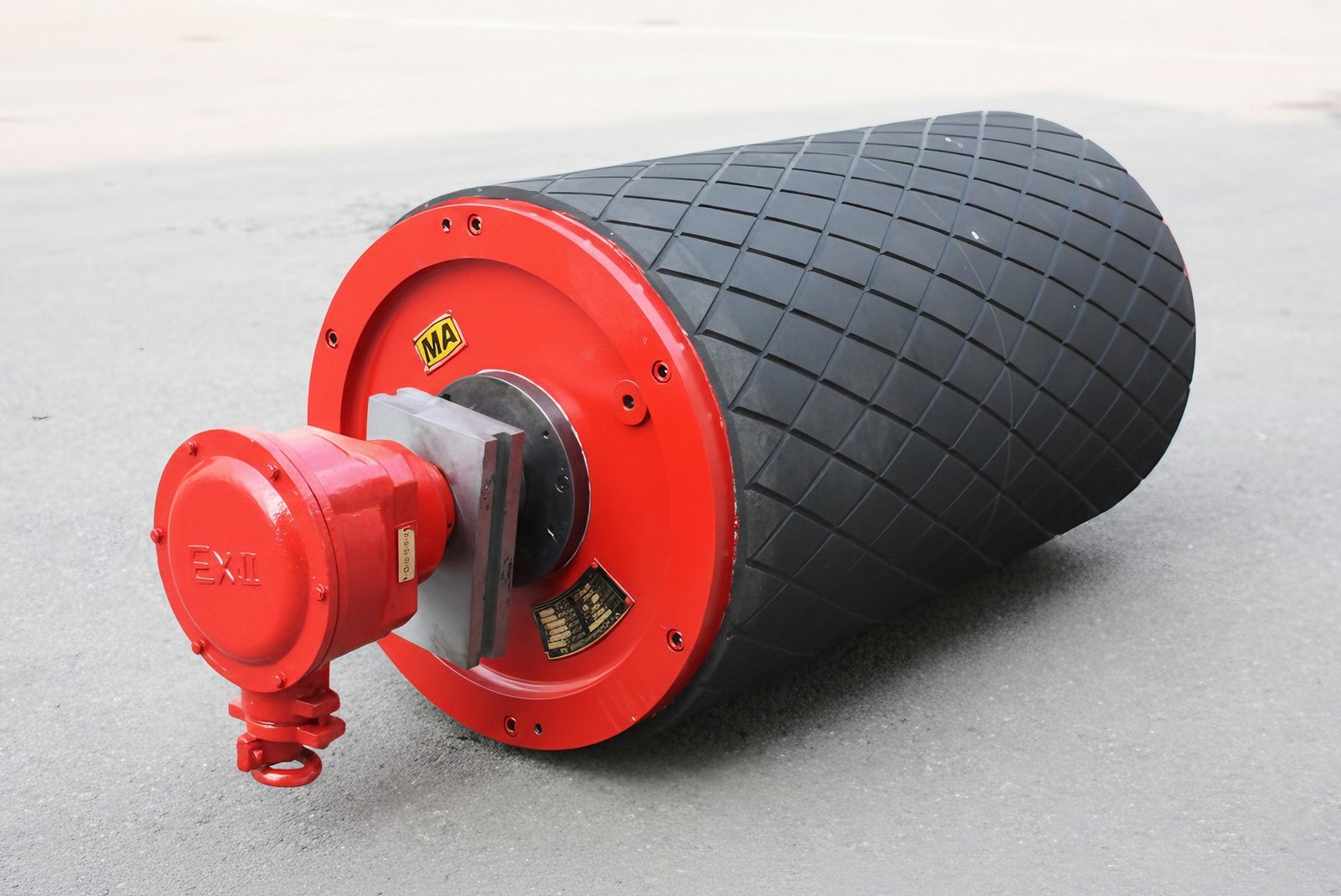

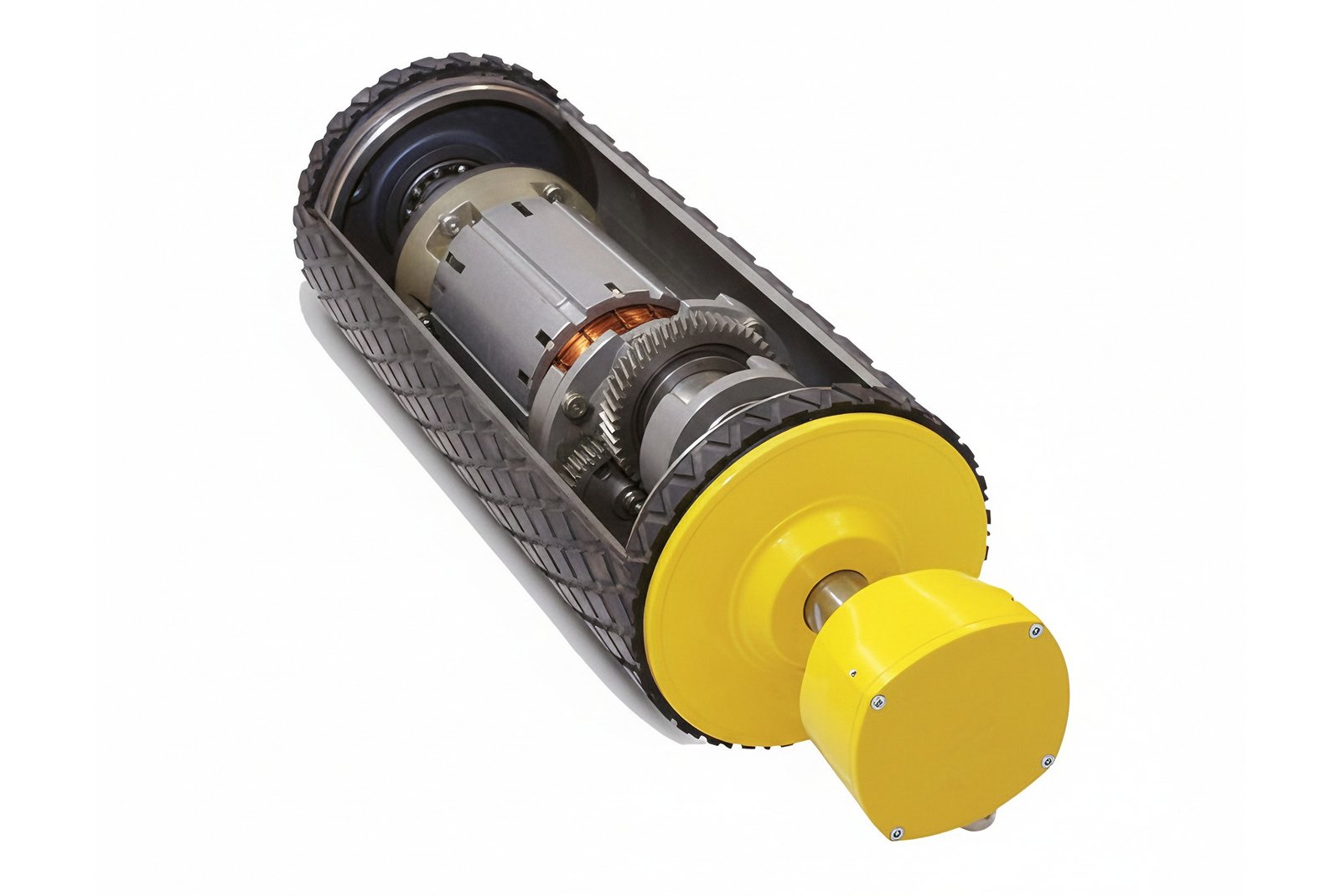

C. Motorized Pulley
The Motorized Pulley is a highly integrated component where the motor, gearbox, and bearings are all enclosed within the pulley shell itself. This design offers a compact, sealed, and energy-efficient drive solution, ideal for environments requiring high cleanliness, space saving, or high protection against dust and moisture.
D. Magnetic Pulley
The Magnetic Pulley is primarily used at the discharge end (often replacing the head pulley). It contains a strong, permanent magnet or electromagnet system inside the shell. Its function is to automatically separate ferrous tramp metal from the conveyed bulk material, protecting downstream equipment and purifying the product.
As a specialized custom solution provider, Hebei Boao focuses on pproviding Pulley solutions tailored to your conveyor’s ISO load classificationsWe provide precision engineering, meaning the following parameters are fully negotiaable and will be fine-tuned to your exact project needs: Pulley Diameter (to match belt speeed), Face Width, Shaft Diameter, Shell Thickness (to withstand load), and Lagging MMaterial (e.g., plain, ceramic, or rubber diamond grooved) to optimize friction and reduce wear.Our final product is certified forminimal run-out and high weld integrity, guaranteeing smooth operaticon and long-term durability.
| Item | Standard Requirement | Unit | Note |
|---|---|---|---|
| Shell Weld Integrity | 100 | % | Ensured through non-destructive testing |
| Dynamic Run-out (Max) | <= 1.0 | mm | Critical for smooth operation and minimizing belt vibration |
| Shaft Stress Factor (Minimum) | >= 4.0 | - | Safety factor against fatigue failure |
| Shaft-to-Hub Locking | High Torque Capacity | - | Ensures no slippage between shaft and shell |
| Lagging Adhesion Strength | High | N/mm^2 | Guarantees long-term lagging integrity |
BAO Manufacturing and QC Authority

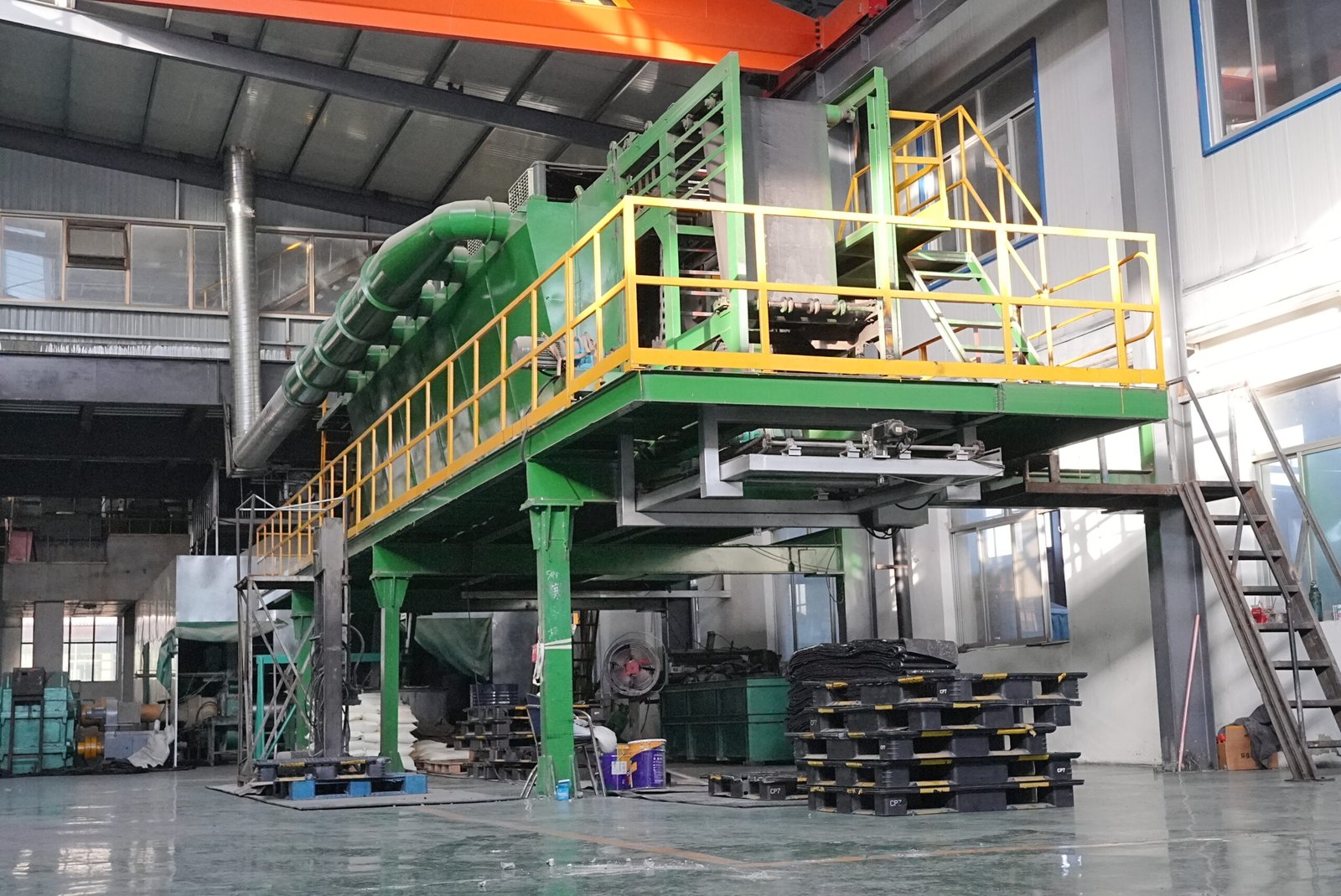

BAO is an established, large-scale manufacturer rooted in the Boye Industrial Hub, specializing in advanced heavy-duty conveyor systems since 1980. We integrate proprietary R&D and large-format production capacity up to 3300mm to deliver high-quality, technically demanding belting solutions globally.
Customized Process
01
Define Requirements
Client submits all necessary parameters: belt type, ply count, width, and specific environmental details for analysis.
02
Engineering Design
Our engineering team validates technical feasibility and designs the optimal carcass and rubber compound structure.
03

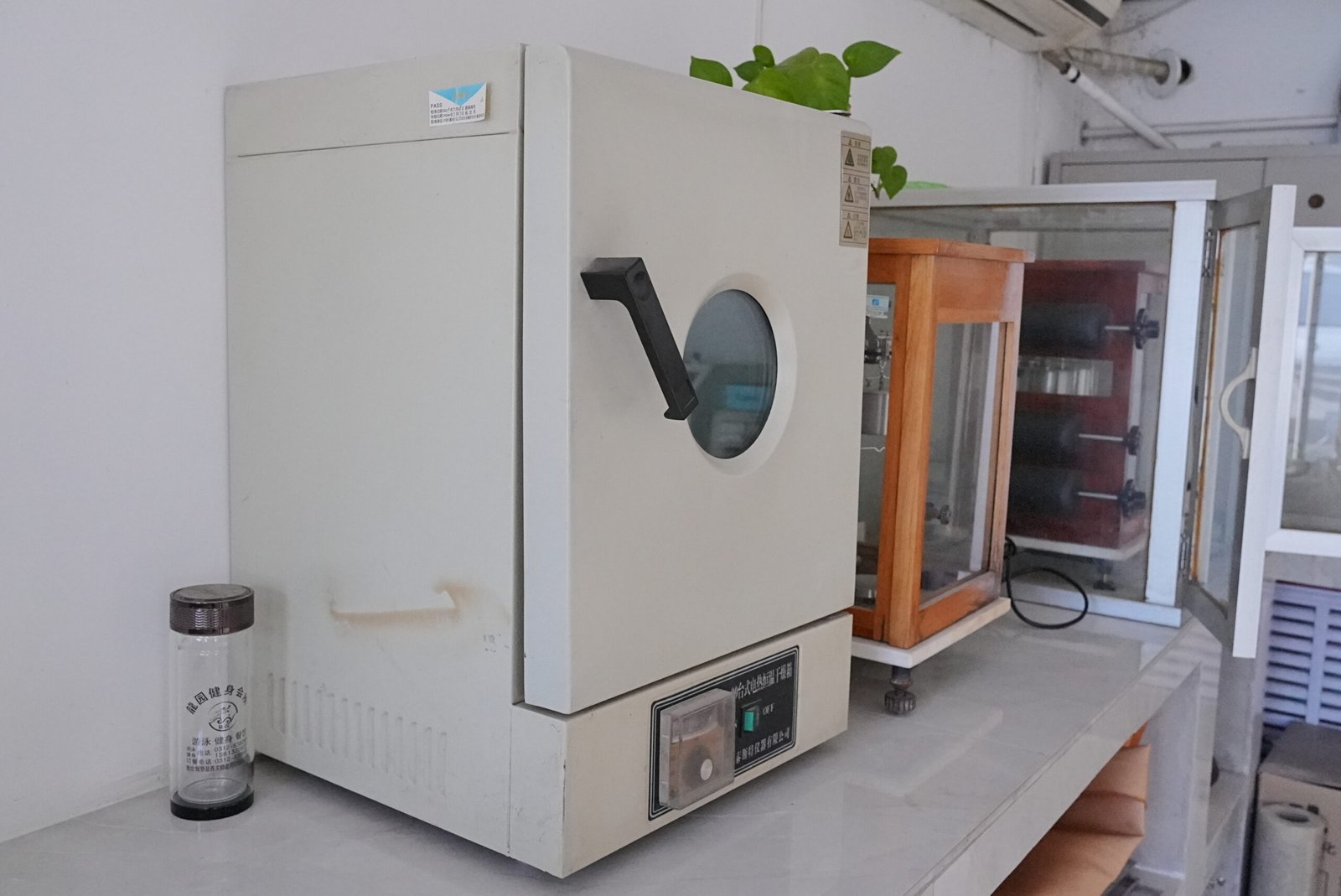

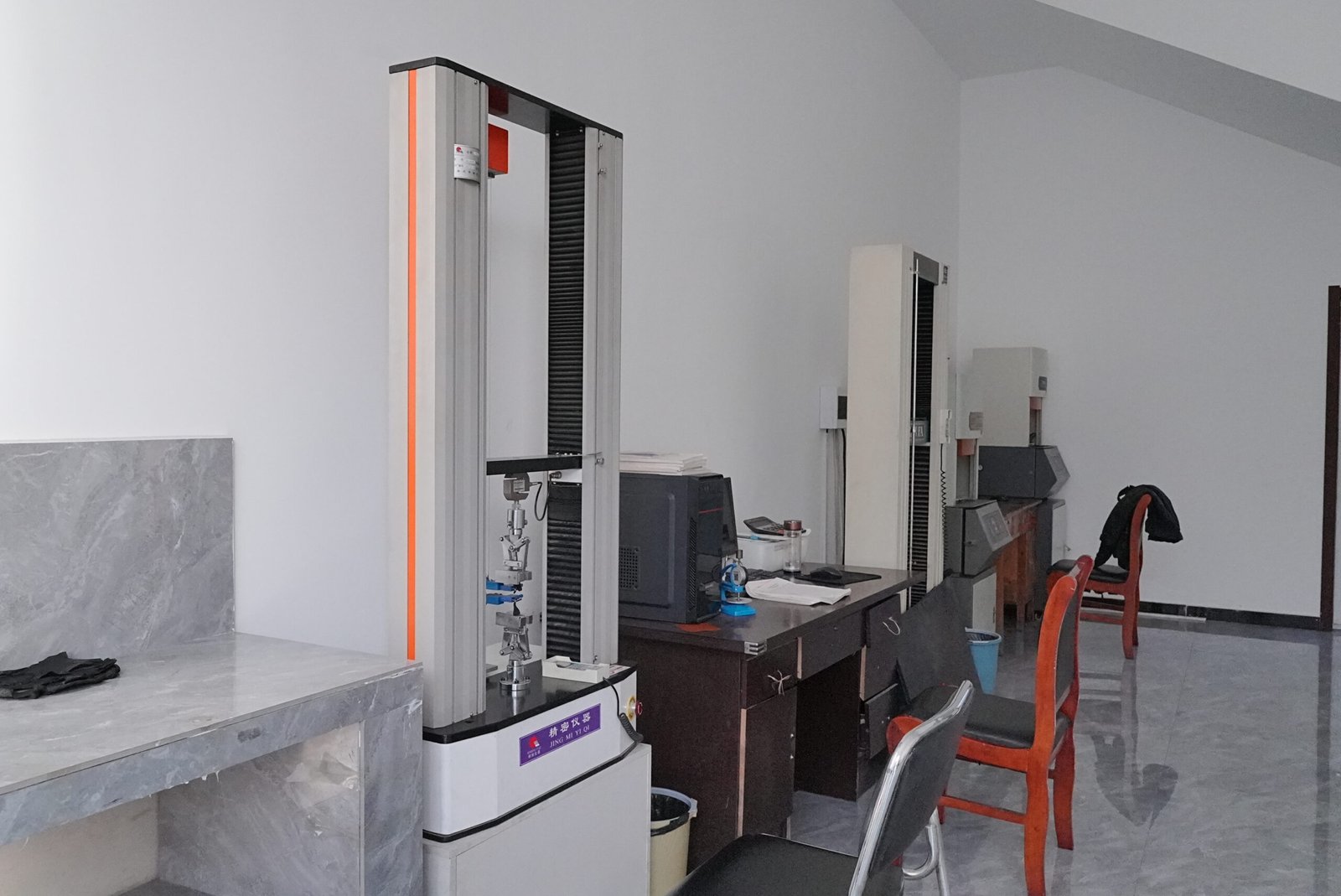

Material Validation

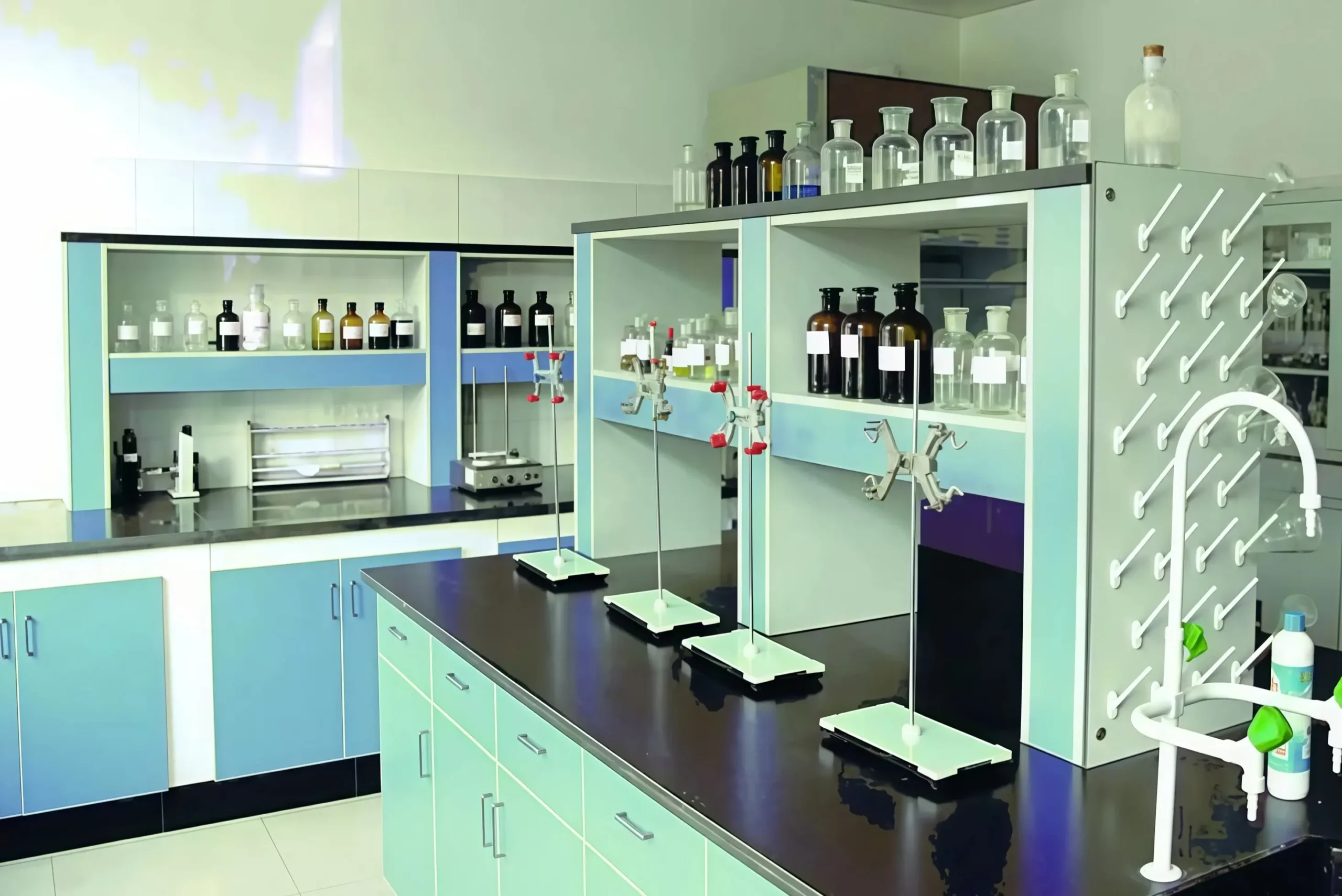

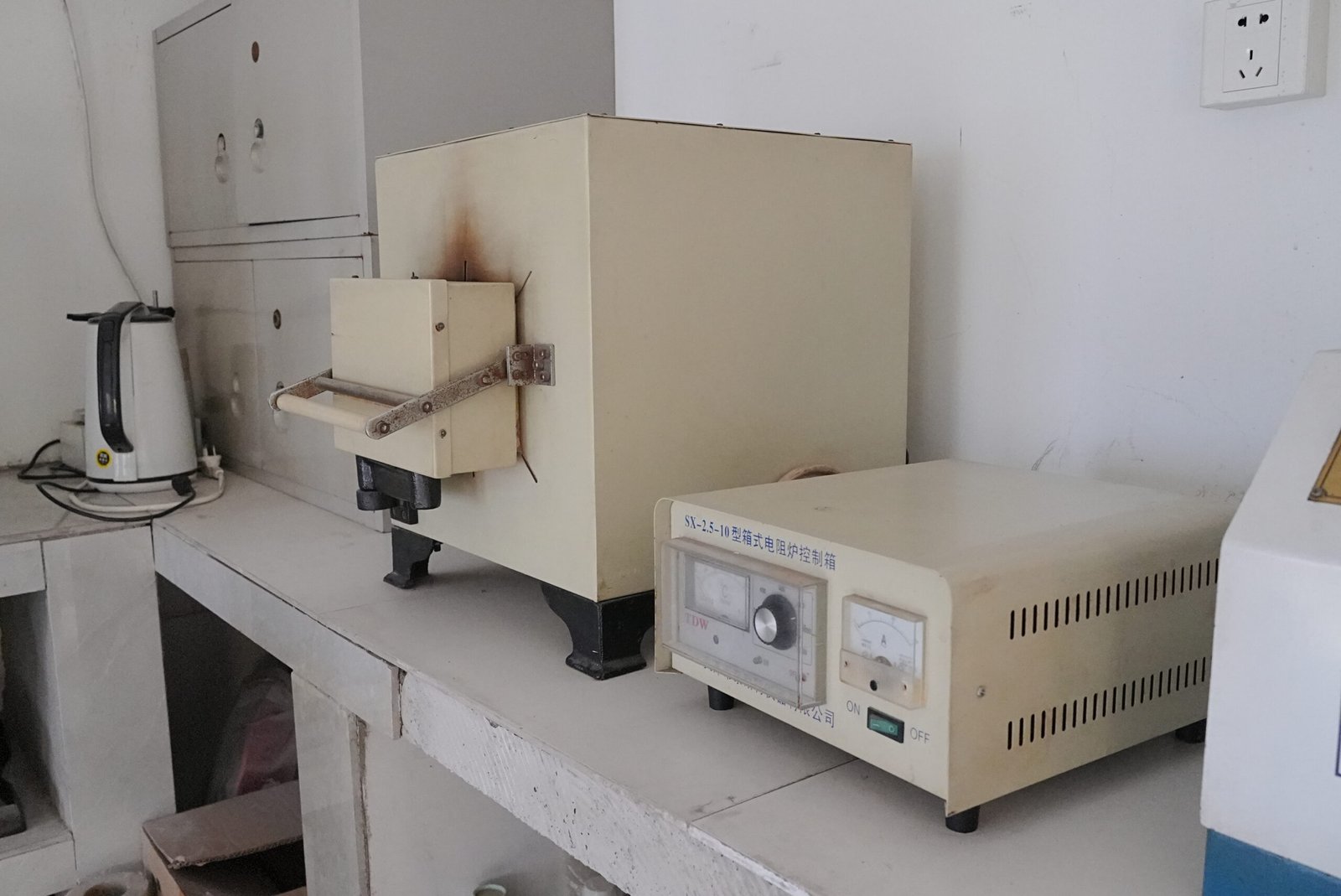

Raw materials are validated in our in-house lab to confirm integrity and performance before production commences.
04

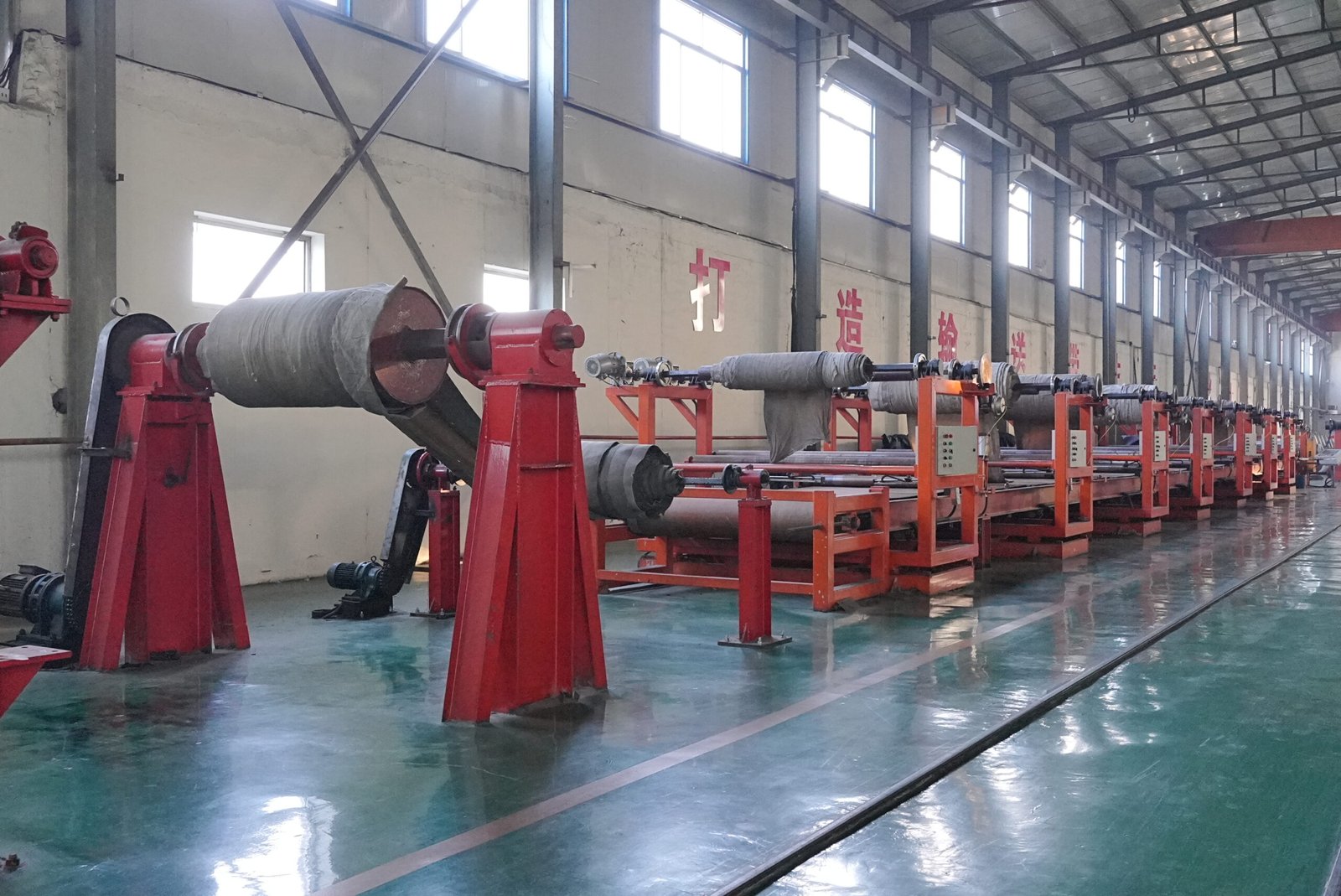

Controlled Production

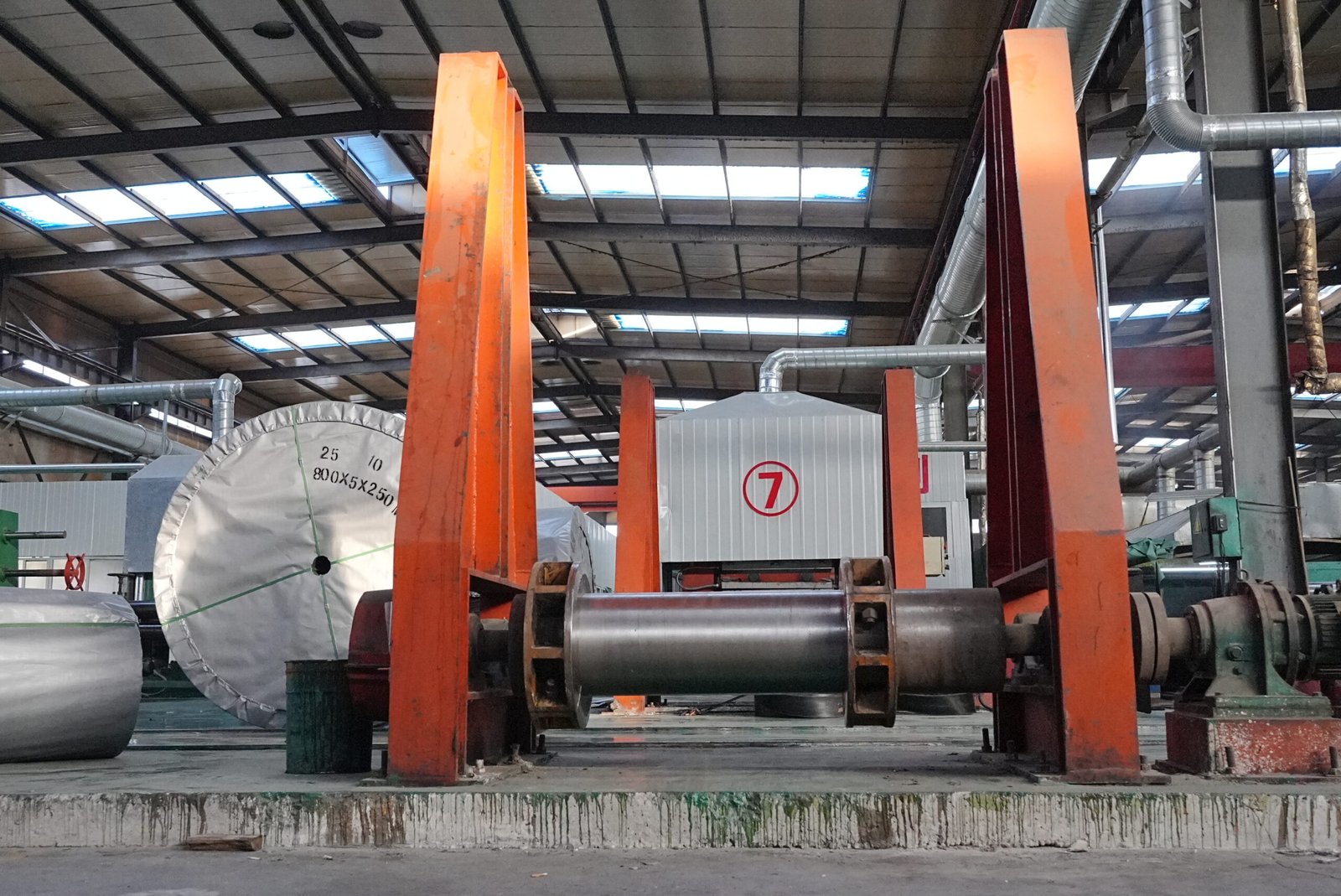

Manufacturing proceeds under strict QC protocols, utilizing high-capacity presses for a reliable, continuous supply.
05
Final Quality Check
Finished product undergoes comprehensive dimensional and physical property testing to verify compliance with order specifications.
06
Certified Delivery
Product is delivered with a complete quality inspection report, backed by long-term technical support services.
FAQs
1. What is the difference between a Drive Pulley and a Bend Pulley?
A Drive Pulley transmits power and handles the highest tension. A Bend Pulley (or Tail/Head Pulley) changes the belt's direction and handles lower tension, primarily focusing on tracking.
2. What is the primary advantage of a Motorized Pulley?
he main advantage is its highly compact, sealed, and integrated design, making it energy efficient, quiet, and ideal for space-constrained or harsh environments where external components are undesirable.
3. How do you ensure the strength of the pulley shell?
We ensure strength by utilizing thick, robust steel shells and performing high-quality welding. Crucially, the welding integrity is often confirmed using non-destructive testing methods.
4. How does a pulley's diameter affect the belt life?
Using a pulley with a larger diameter generally reduces the stress and flexural fatigue on the conveyor belt, which in turn extends the belt's service life.
5. What key information is required to select the correct puulley?
We require the Belt Tension (kN/m), the Pulley Diameter, the Face Width, and whether the pulley requires a Drive or Non-Drive design.
